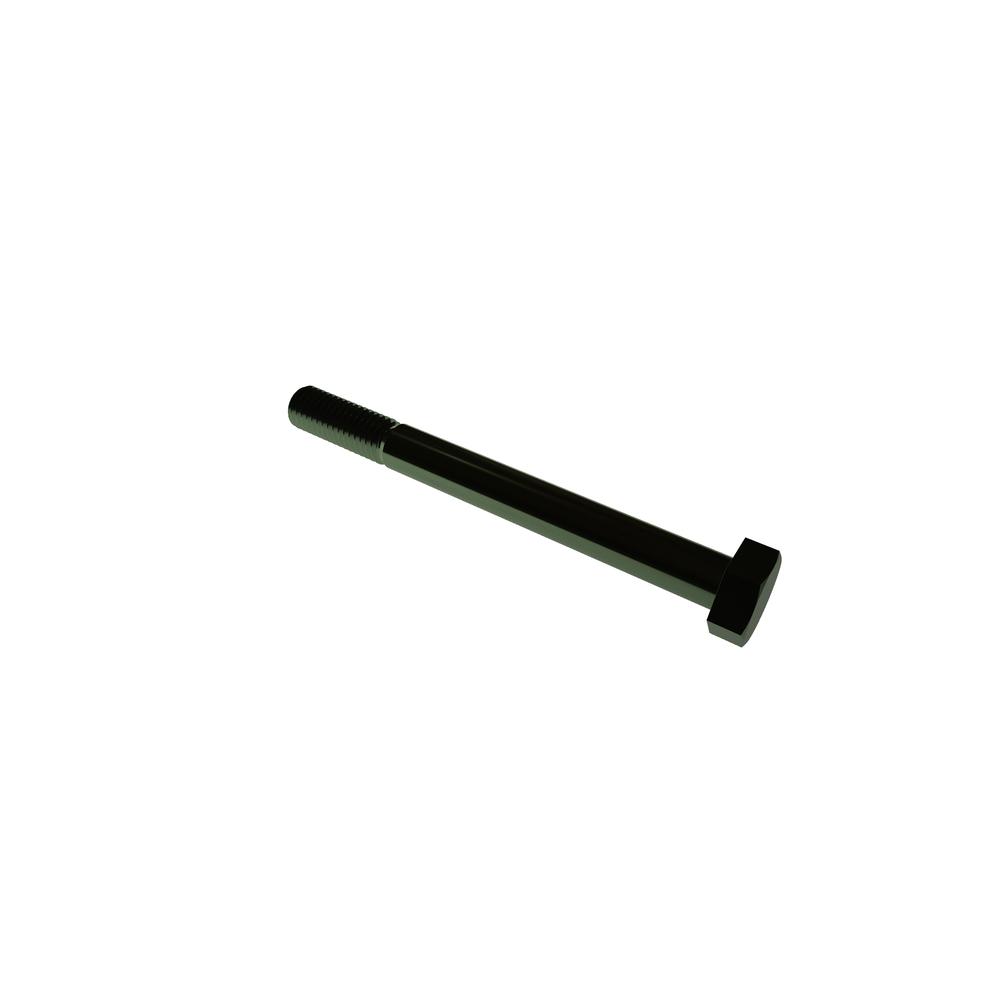

M10-1.5 X 100 HX HD 8.8 ZN CR3
.10C100HHDWR
| Item Id | .10C100HHDWR |
| Description | M10-1.5 X 100 HEX HD P/T 8.8 ZN CR3 |
| Alternate Codes | BN57 M10X100, DIN931, ISO 4014 M10X100 |
| Extended Description | DIN931 ISO 4014 |
| Packaging | EA |
| Additional Industry Cross Reference | 91280A692 |
| Body Diameter (Max.) | 10.58 mm |
| Body Diameter (Min.) | 9.42 mm |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | 8.8 |
| Head Height (Max.) | 6.85 mm |
| Head Height (Min.) | 6.17 mm |
| Head Type | Hex |
| Length | 100mm |
| Material | Steel |
| Meets (Standard) | ASME B18.2.3.5M |
| Nominal Thread Size | 10.00 mm |
| RoHS | Compliant |
| Thread Size | M10x1.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Width Across Flat (Max.) | 16.00 mm |
| Width Across Flat (Min.) | 15.57 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
