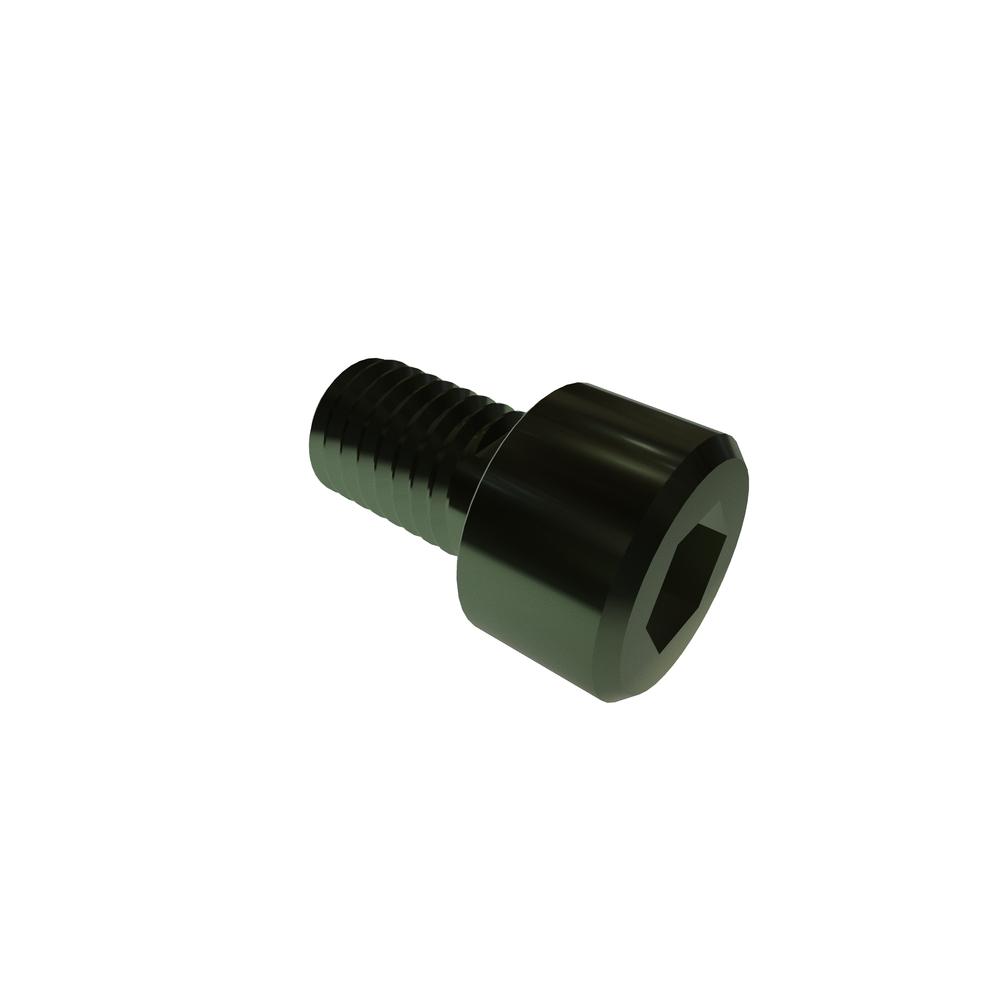

M10-1.5 X 16 SOC CAP 8.8 ALLOY ZN RoHS
.10C16SHCWR
| Item Id | .10C16SHCWR |
| Description | M10-1.5 X 16 SOC CAP 8.8 ALLOY ZN RoHS |
| Alternate Codes | 90327A175 |
| Extended Description | M10-1.5 X 16 Socket head CAP 8.8 steel Zinc plate RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 90327A175 |
| Body Diameter (Max.) | 10.00 mm |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Finish | Zinc Cr3 Plated |
| Grade | 8.8 |
| Head Diameter (Max.) | 16.00 mm |
| Head Diameter (Min.) | 15.67 mm |
| Head Height (Max.) | 10.00 mm |
| Head Height (Min.) | 9.81 mm |
| Head Type | Socket |
| Hex Socket Size | 8.00 mm |
| Key Engagement (Min.) | 5.00 mm |
| Length | 16mm |
| Material | Steel |
| Meets (Standard) | ASME B18.3.1M |
| RoHS | Compliant |
| Thread Size | M10x1.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
