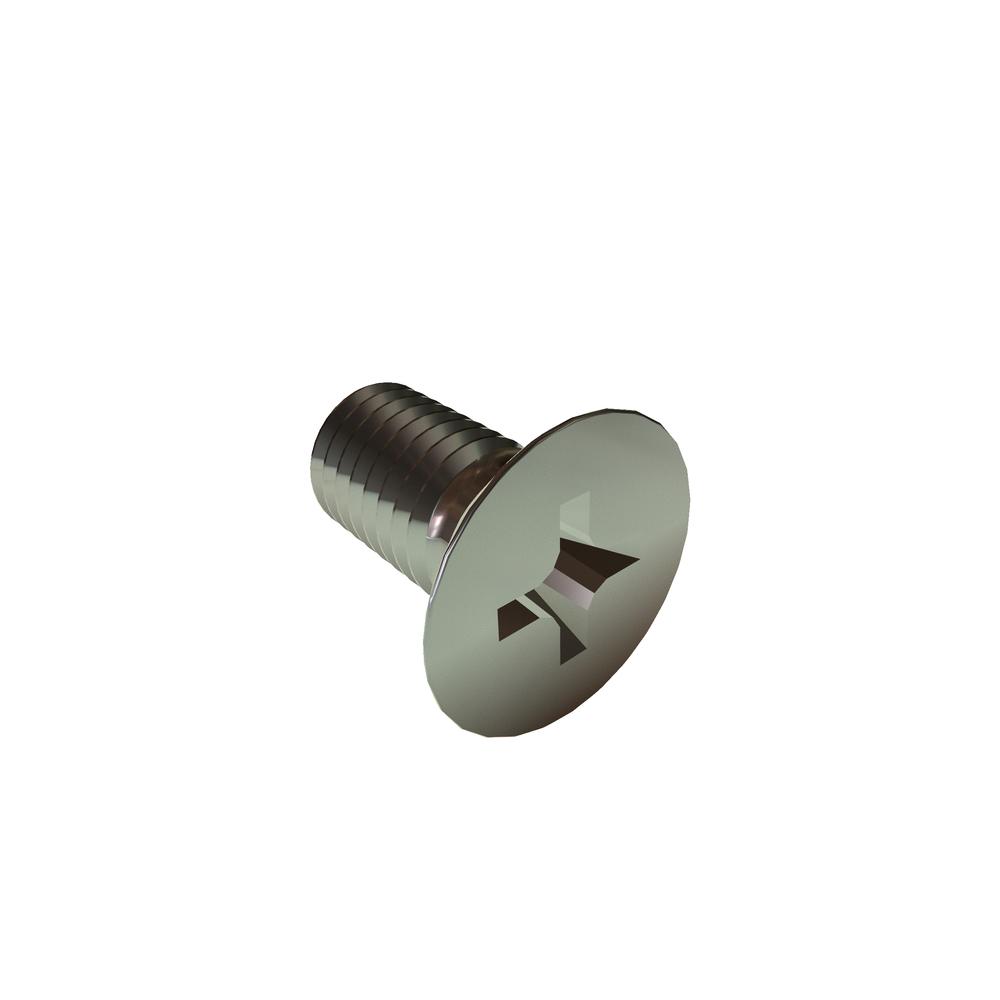

Defaultimage2 .10C20PFMS M10-1.5 X 20 PHIL FLAT SST RoHS



  • Item Id: .10C20PFMS
  • Description: M10-1.5 X 20 PHIL FLAT SST RoHS
  • Extended Description: DIN965
  • Quantity on Hand: 0
  • Packaging: EA
  • Please call your Olander Inside Sales Representative at (800) 538-1500 for pricing and availability details on this item. We are happy to assist you!
    Additional Industry Cross Reference92010A630
    BrandVARIED
    Drive Size4
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)18.30 mm
    Head Diameter (Min.)17.78 mm
    Head Height5.00 mm
    Head TypeFlat
    MaterialStainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter10.00 mm
    Recess Depth5.98 mm
    Recess Diameter9.88 mm
    Recess Width1.98 mm
    RoHSCompliant
    Thread SizeM10x1.5
    Thread TypeMetric Coarse
    UnitsMetric
