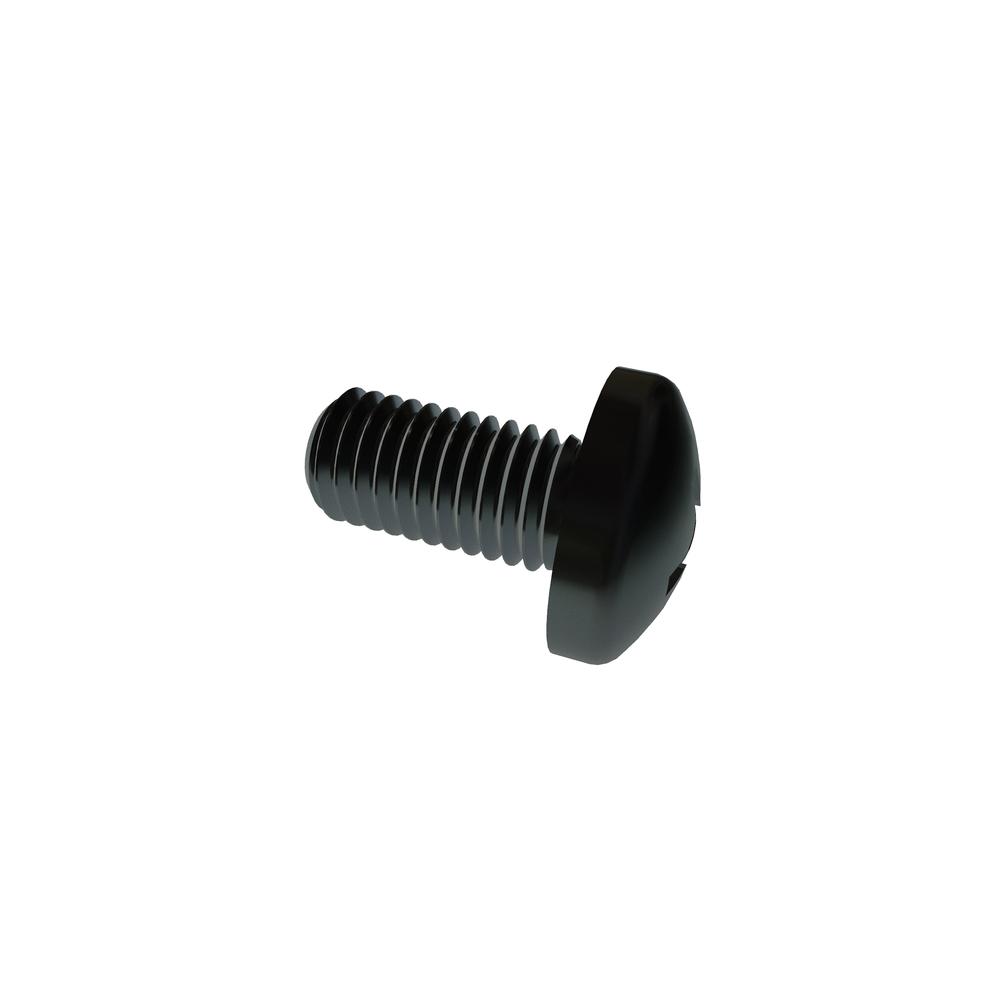

M10-1.5 X 20 PH PAN STL ZN CR3
.10C20PPMZR
| Item Id | .10C20PPMZR |
| Description | M10-1.5 X 20 PHIL PAN STL ZN RoHS |
| Alternate Codes | 92005A626 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92005A626 |
| Body Diameter (Max.) | 10.00 mm |
| Body Diameter (Min.) | 8.86 mm |
| Brand | VARIED |
| Drive Size | 4 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 20.00 mm |
| Head Diameter (Min.) | 19.48 mm |
| Head Height (Max.) | 7.50 mm |
| Head Height (Min.) | 7.10 mm |
| Head Radius (Min.) | 16.00 mm |
| Head Type | Pan |
| Length | 20mm |
| Material | Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 10.00 mm |
| Recess Depth (Max.) | 5.80 mm |
| Recess Depth (Min.) | 5.20 mm |
| Recess Diameter | 10.18 mm |
| RoHS | Compliant |
| Thread Size | M10x1.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
