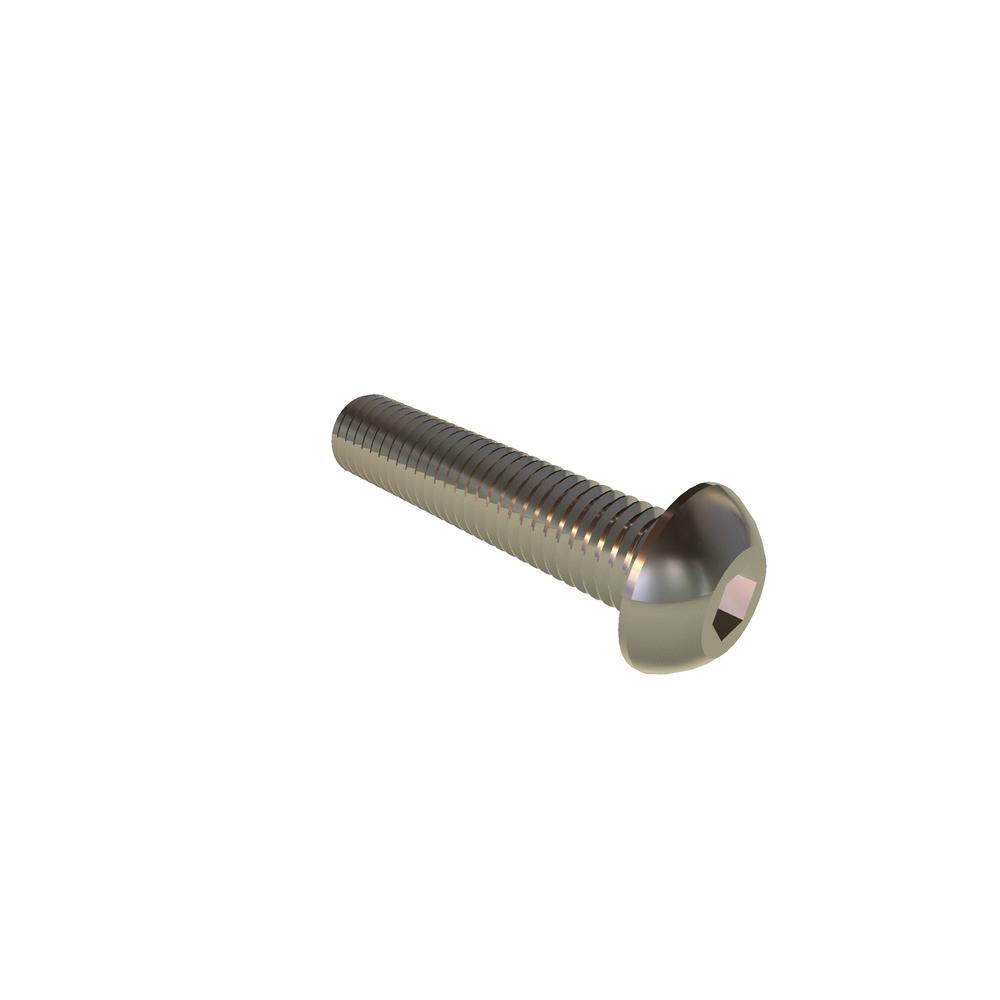

Image for reference purposes only. Actual product may vary.
.10C45BHCS
M10-1.5 X 45 BUT SOC SST RoHS
Alternate Codes: N/A
M10-1.5 X 45 Button Socket Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 10 mm |
| Length | 45mm |
| Thread Size | M10x1.5 |
| Finish | Plain |
| Material | Stainless Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 5.50 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Fillet Transition Diameter (Min.) | 10.80 mm |
| Fillet Transition Diameter (Max.) | 11.20 mm |
| Head Side Height (Ref.) | 0.80 mm |
| Key Engagement | 3.12 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 92095A422 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 17.50 mm |
| Head Diameter (Min.) | 17.07 mm |
| Head Height (Min.) | 5.20 mm |
| Hex Socket Size | 6.00 mm |
