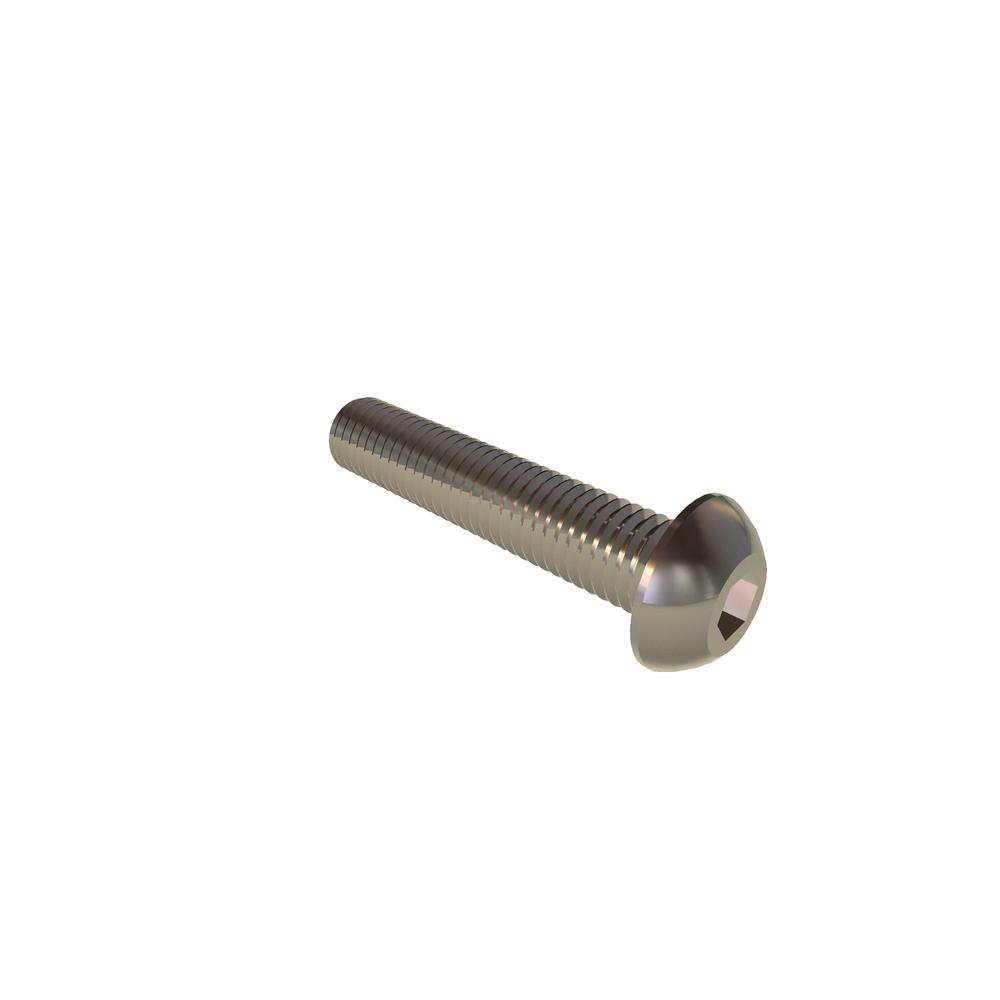

M10-1.5 X 50 BUT SOC SST RoHS
.10C50BHCS
| Item Id | .10C50BHCS |
| Description | M10-1.5 X 50 BUT SOC SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92095A424 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 11.20 mm |
| Fillet Transition Diameter (Min.) | 10.80 mm |
| Finish | Plain |
| Head Diameter (Max.) | 17.50 mm |
| Head Diameter (Min.) | 17.07 mm |
| Head Height (Max.) | 5.50 mm |
| Head Height (Min.) | 5.20 mm |
| Head Side Height (Ref.) | 0.80 mm |
| Head Type | Button |
| Hex Socket Size | 6.00 mm |
| Key Engagement | 3.12 mm |
| Length | 50mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 10 mm |
| RoHS | Compliant |
| Thread Size | M10x1.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
