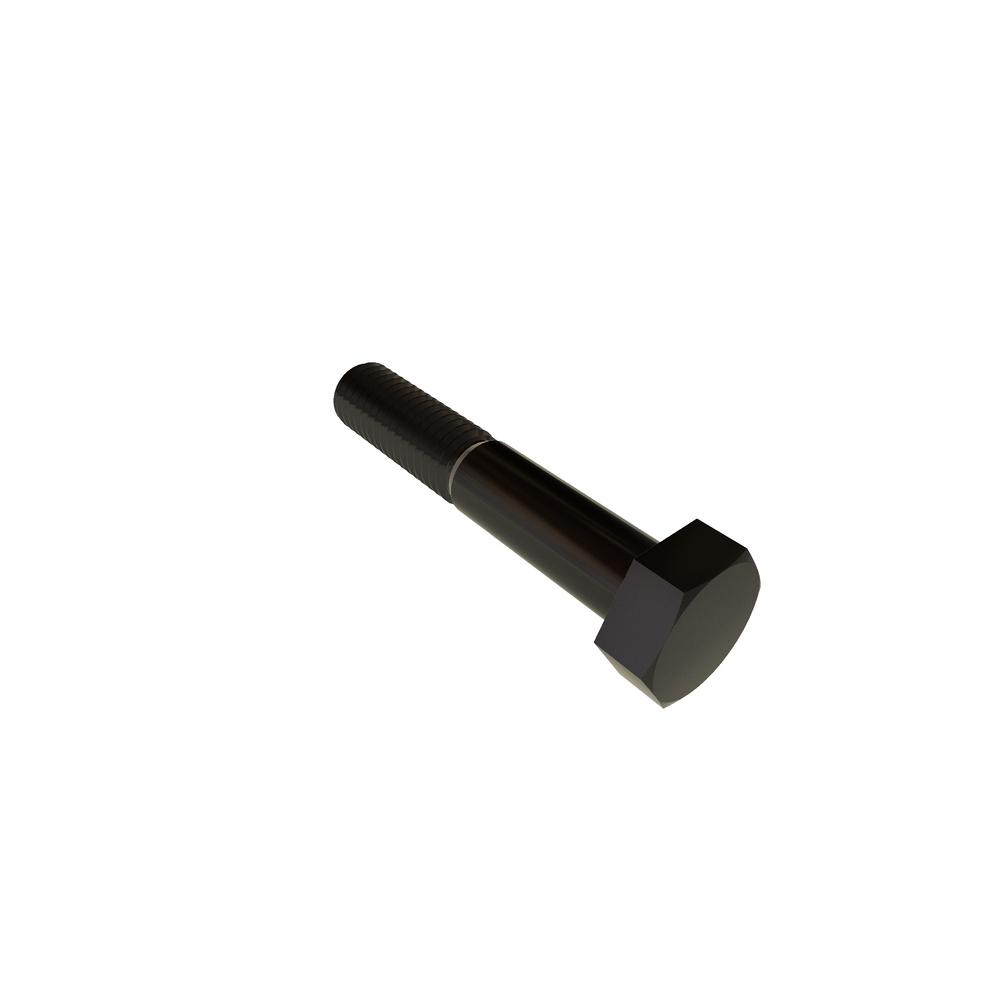

Image for reference purposes only. Actual product may vary.
.10C55HHDWB
M10-1.5 X 55 HX HD GR 8.8 STL BLK
Alternate Codes: N/A
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Meets (Standard) | ASME B18.2.3.5M |
| Length | 55mm |
| Thread Size | M10x1.5 |
| Head Height (Min.) | 6.17 mm |
| Body Diameter (Max.) | 10.58 mm |
| Head Height (Max.) | 6.85 mm |
| Body Diameter (Min.) | 9.42 mm |
| Nominal Thread Size | 10.00 mm |
| Width Across Flat (Min.) | 15.57 mm |
| Thread Type | Metric Coarse |
| Material | Steel |
| Width Across Flat (Max.) | 16.00 mm |
| Finish | Black Oxide |
| Head Type | Hex |
| Grade | 8.8 |
| Brand | VARIED |
| Units | Metric |
