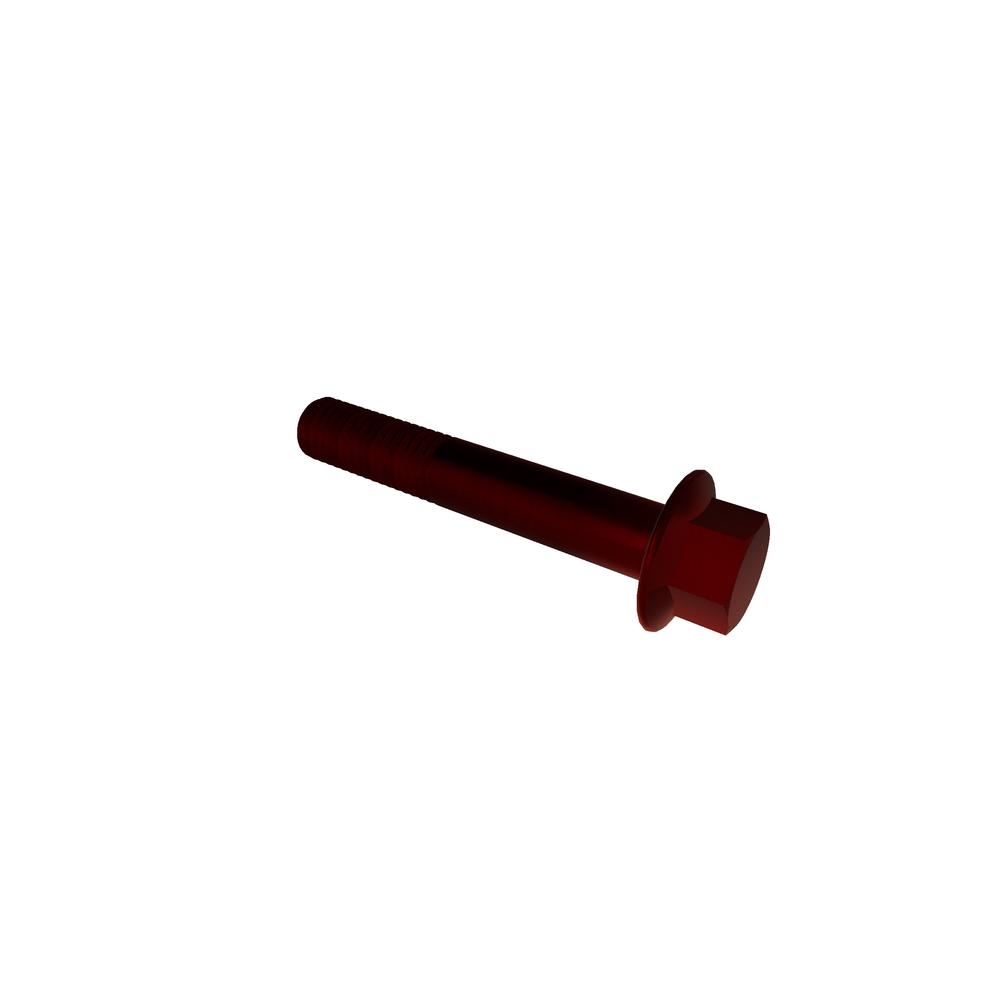

Image for reference purposes only. Actual product may vary.
.10C60HFBXB
M10-1.5 X 60 HEX FLANGE BOLT 10.9 PLN
Alternate Codes: 98093A642
M10-1.5 X 60 Hex Flange Bolt DIN6921 10.9 Black Phosphate RoHS
Pricing per Unit
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 10.00 mm |
| Thread Size | M10x1.5 |
| Finish | Plain |
| Type | Flange Bolt |
| Thread Length | 26.0 mm |
| Brand | VARIED |
| Grade | 10.9 |
| Material | Alloy Steel |
| Total Length | 60mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Hex Flange Bolt |
| Total Shank Diameter (Min.) | 9.78 mm |
| Total Shank Diameter (Max.) | 10.00 mm |
| Flange Diameter (Max.) | 20.80 mm |
| Wrenching Height (Min.) | 4.30 mm |
| Additional Industry Cross Reference | 98093A642 |
| Meets (Standard) | ASME B18.2.3.4M |
| Head Height (Max.) | 9.70 mm |
| Width Across Flat (Max.) | 13.00 mm |
| Width Across Flat (Min.) | 12.57 mm |
