  • Item Id: .10C90HHDS

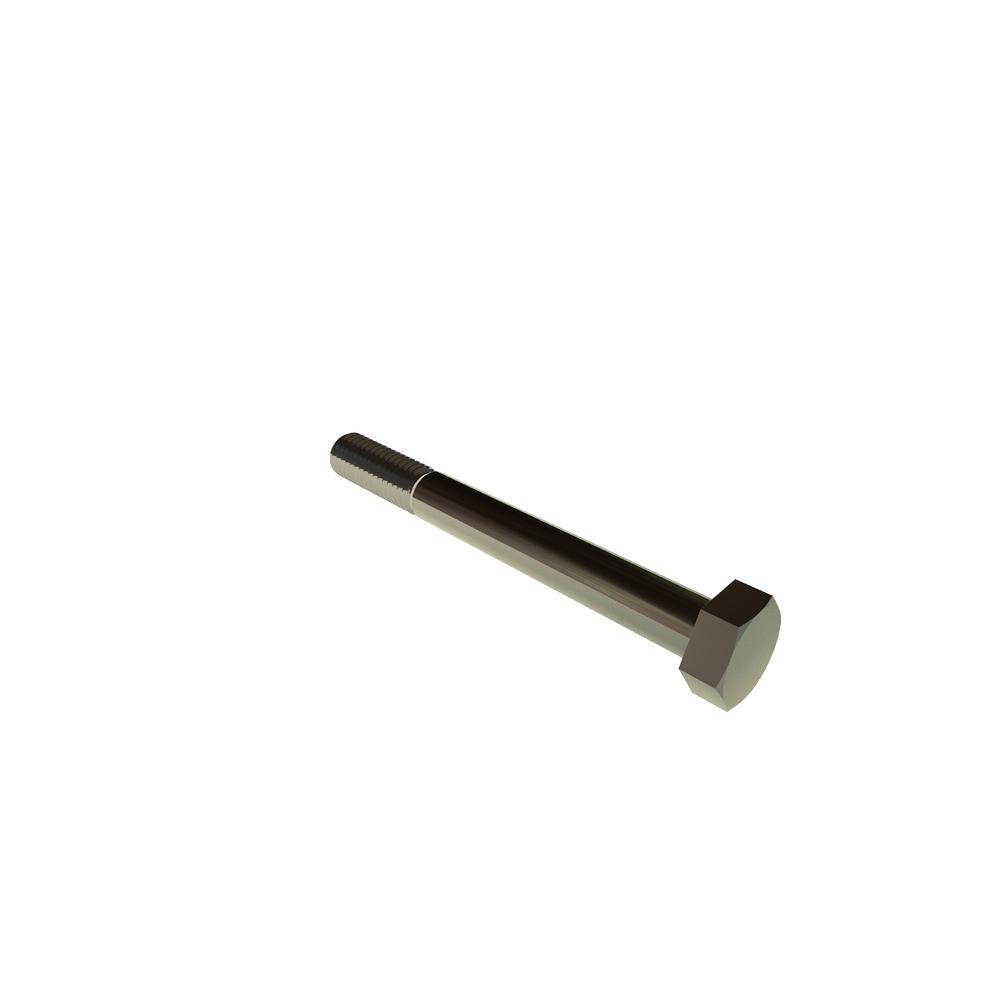

  • Description: M10-1.5 X 90 HEX HD P/T SST RoHS
  • Extended Description:
  • Quantity on Hand: 0
  • Packaging: EA
    • Please call your Olander Inside Sales Representative at (800) 538-1500 for pricing and availability details on this item. We are happy to assist you!
    Additional Industry Cross Reference91287A179
    Body Diameter (Max.)10.58 mm
    Body Diameter (Min.)9.42 mm
    BrandVARIED
    FinishPlain
    GradeOther
    Head Height (Max.)6.85 mm
    Head Height (Min.)6.17 mm
    Head TypeHex
    MaterialStainless Steel
    Meets (Standard)ASME B18.2.3.5M
    Nominal Thread Size10.00 mm
    RoHSCompliant
    Thread SizeM10x1.5
    Thread TypeMetric Coarse
    UnitsMetric
    Width Across Flat (Max.)16.00 mm
    Width Across Flat (Min.)15.57 mm
