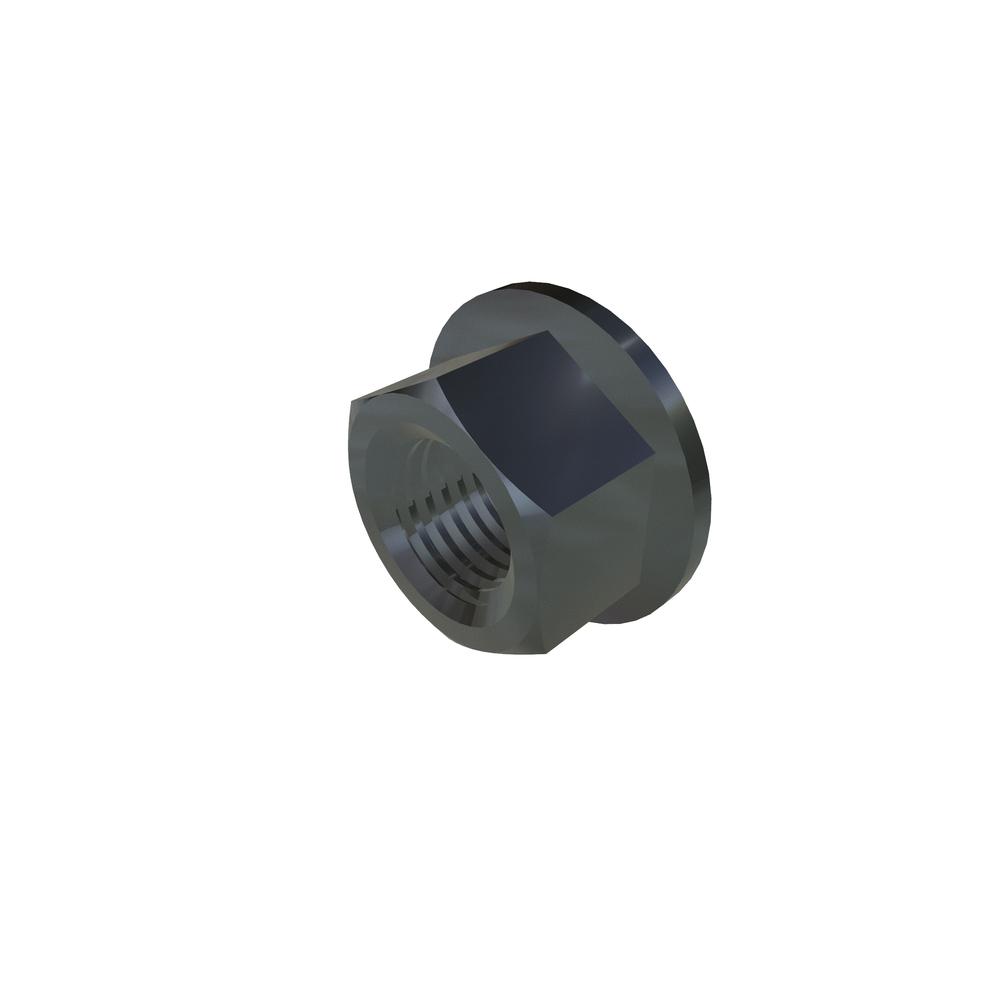

M10-1.25 FLANGE NUT STL ZN Non-RoHS
.10FFLNZZ-NONROHS
| Item Id | .10FFLNZZ-NONROHS |
| Description | M10-1.25 FLANGE NUT STL ZN Non-RoHS |
| Alternate Codes | .10FFLNZZ |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Finish | Zinc Clear |
| Flange Diameter (Max.) | 21.80 mm |
| Flange Diameter (Min.) | 19.60 mm |
| Flange Thickness (Min.) | 1.50 mm |
| Head Thickness (Max.) | 10.00 mm |
| Head Thickness (Min.) | 9.64 mm |
| Material | Steel |
| Meets (Standard) | ISO 4161 |
| Nominal Diameter | 10.00 mm |
| RoHS | Non Compliant |
| Thread Size | M10x1.25 |
| Thread Type | Metric Fine |
| Type | Flange Nut |
| Units | Metric |
| Width Across Flat (Max.) | 15.00 mm |
| Width Across Flat (Min.) | 14.73 mm |
| Wrenching Height (Min.) | 5.60 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
