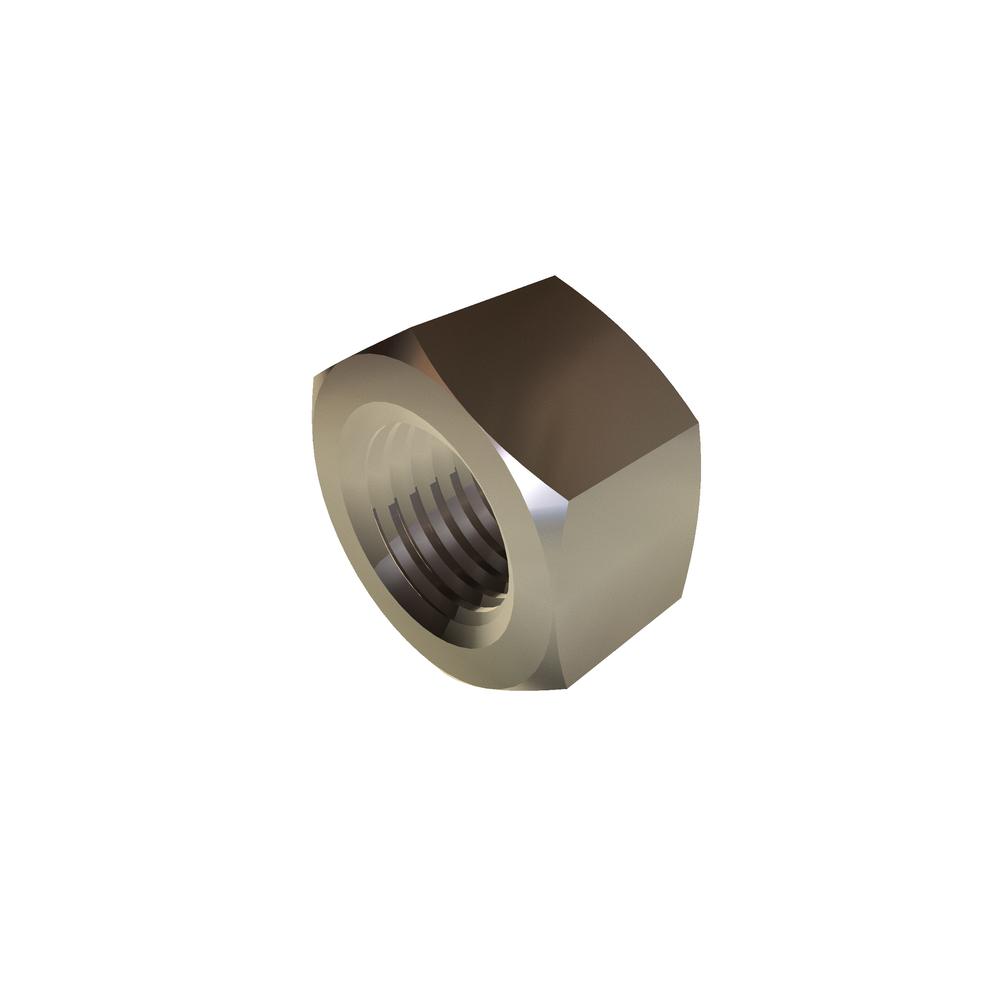

M10-1.25 HX NUT SST RoHS
.10FHNTS
| Item Id | .10FHNTS |
| Description | M10-1.25 FINE THD HX NUT DIN934 SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 93850A335 |
| Brand | VARIED |
| Finish | Plain |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.2.2 |
| Nominal Diameter | 10.00 mm |
| RoHS | Compliant |
| Thickness (Max.) | 9.10 mm |
| Thickness (Min.) | 8.70 mm |
| Thread Size | M10x1.25 |
| Thread Type | Metric Fine |
| Type | Hex Nut |
| Units | Metric |
| Width Across Flat (Max.) | 15.00 mm |
| Width Across Flat (Min.) | 14.73 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
