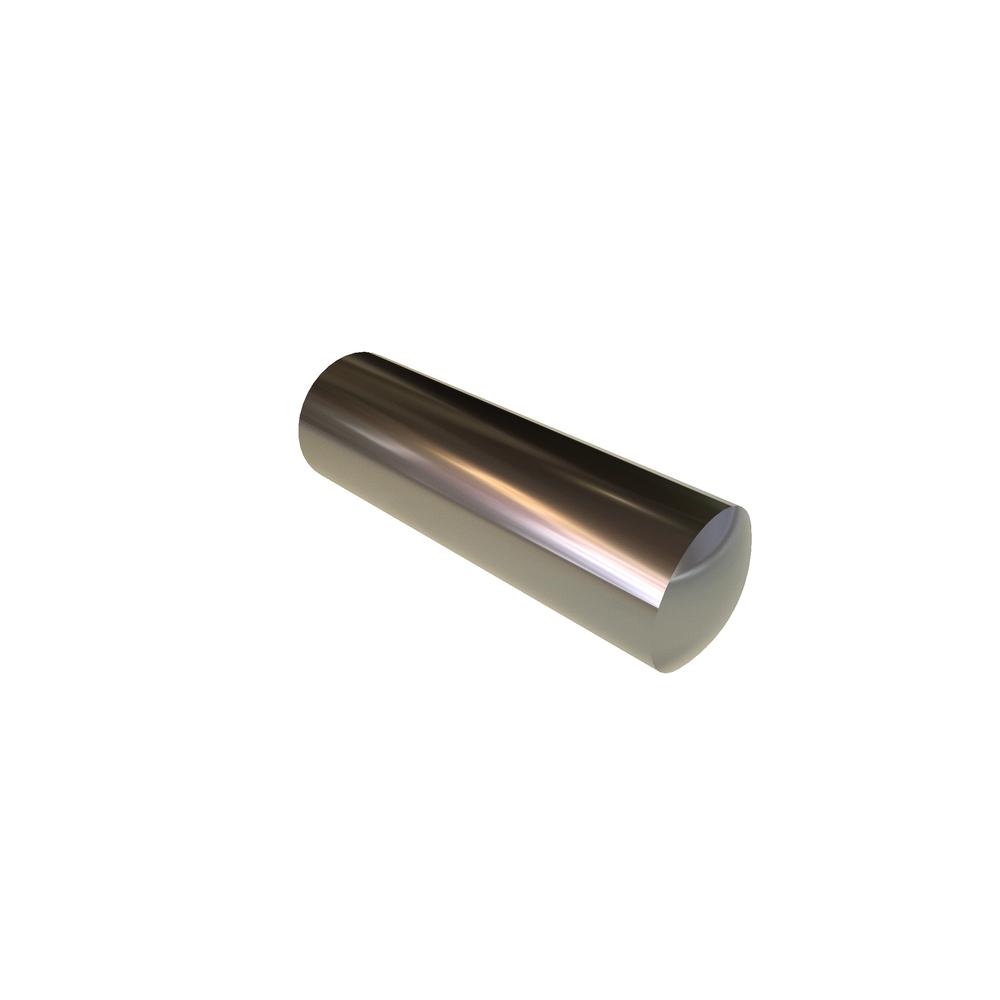

Image for reference purposes only. Actual product may vary.
.10R20DOWS
M10 X 20 DOWEL PIN SST RoHS
Alternate Codes: N/A
flat ends; measurement is overall length of pin
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $2.413 | $1.856 | $1.508 | $1.341 | $1.206 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 10mm |
| Length | 20mm |
| Tolerance | h8 |
| Type | Slip Fit |
| Brand | VARIED |
| Material | 300 Stainless Steel |
| Units | Metric |
| Corner radius | 0.60 mm |
| Pin Diameter (Min.) | 9.973mm |
| Pin Diameter (Max.) | 10.000mm |
| Point Diameter | 9.8 mm |
| Additional Industry Cross Reference | ISO2338 |
| RoHS | Compliant |
| Heat Treat | Unhardened |
