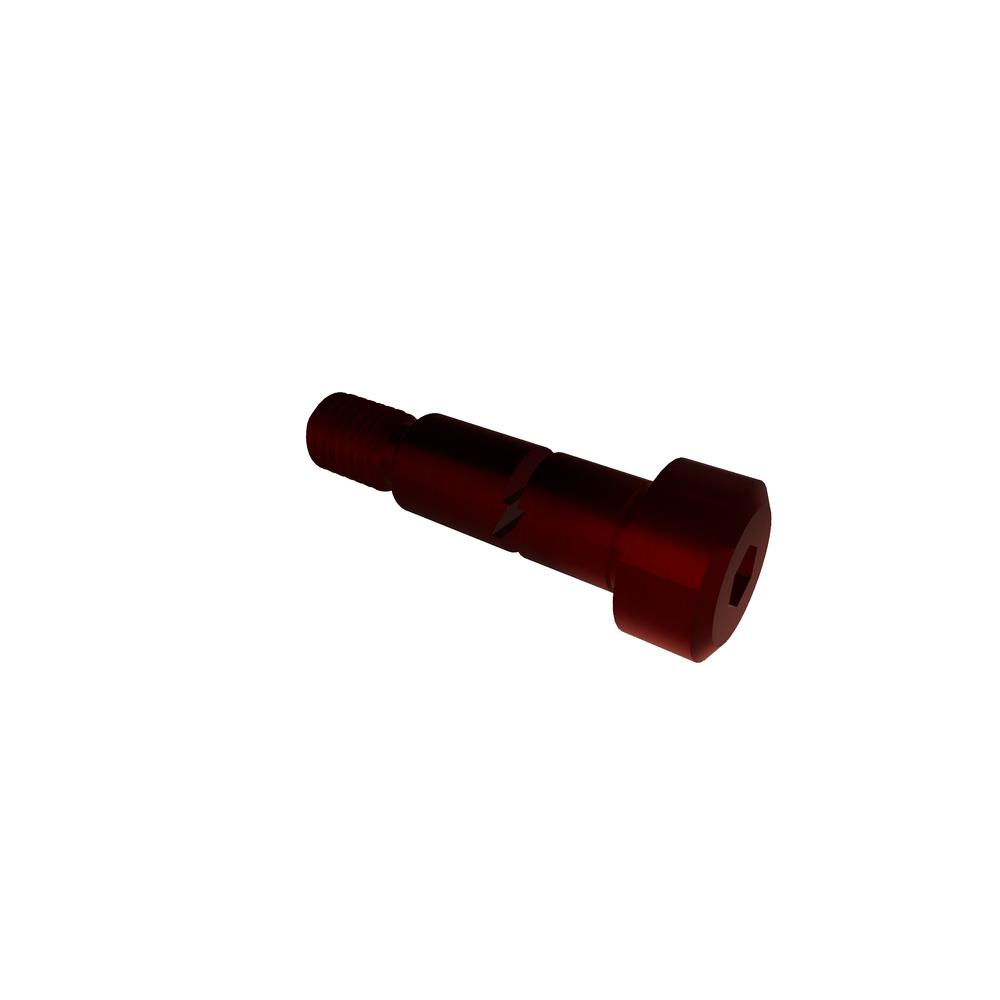

Image for reference purposes only. Actual product may vary.
.10R20SHBA
M10 X 20 SHLDR BOLT ALLOY
Alternate Codes: N/A
M10 X 20 Shoulder Bolt ISO 7379 Alloy RoHS
Pricing per Unit
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 8.00 mm |
| Length | 20mm |
| Thread Size | M8x1.25 |
| Finish | Plain |
| Nominal Shoulder Diameter | 10.00 mm |
| Material | Alloy |
| Thread Length | 13.250 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 4.20 mm |
| Head Side Height (Min.) | 1.00 mm |
| Shoulder Diameter | M10 |
| Shoulder Diameter (Min.) | 9.95 mm |
| Shoulder Diameter (Max.) | 9.99 mm |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Meets (Standard) | ASME B18.3.3M-1986 (2002) |
| Head Diameter (Max.) | 16.00 mm |
| Head Diameter (Min.) | 15.73 mm |
| Head Height (Max.) | 7.00 mm |
| Head Height (Min.) | 6.78 mm |
| Hex Socket Size | 5.00 mm |
