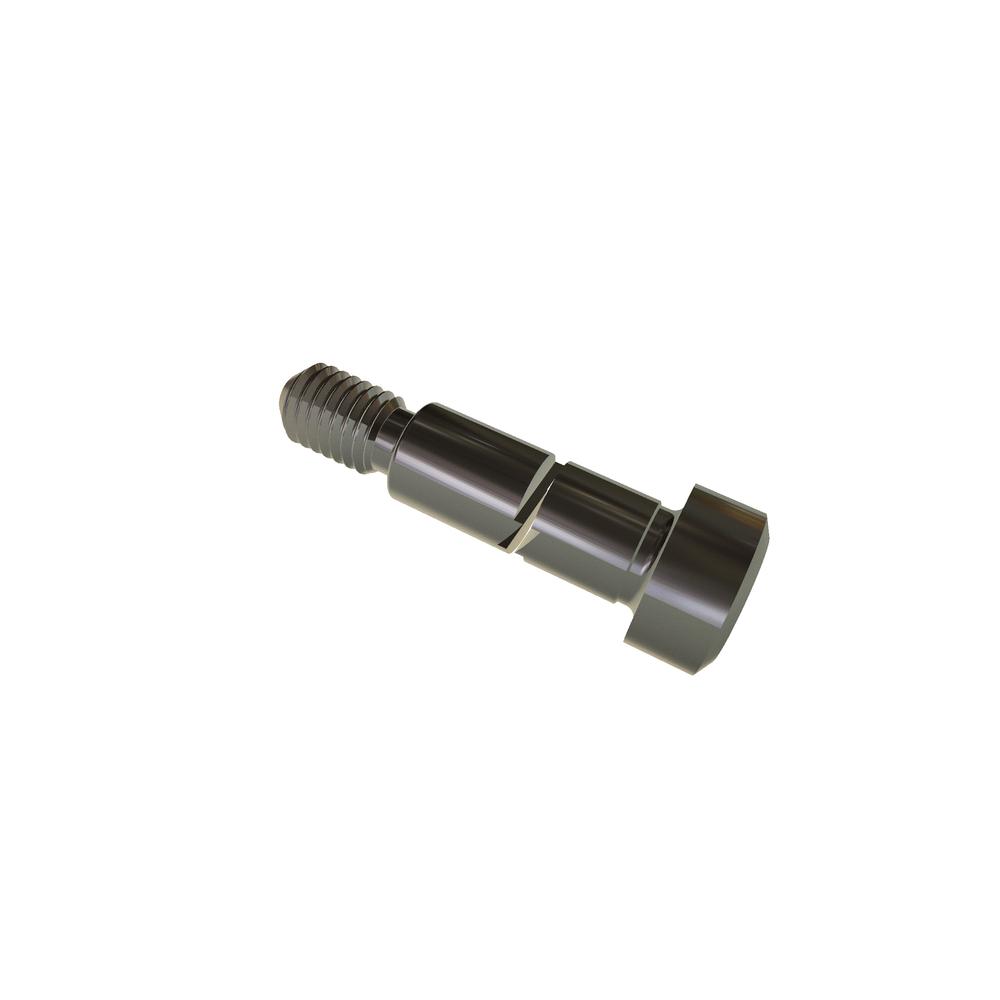

Defaultimage2 .10R25SHBS M10 X 25 SHLDR BOLT SST RoHS



  • Item Id: .10R25SHBS
  • Description: M10 X 25 SHLDR BOLT SST RoHS
  • Alternate Codes: 90265A164
  • Quantity Discounts:
    1 to 2425 to 4950 to 99100 to 249250 to 499Call For
    $9.245$7.704$6.884$6.222$5.990Larger Quantities
  • Extended Description: M8-1.25 THREAD
  • Quantity on Hand: 513
  • Packaging: EA
  • Quantity:
  • Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
    • Additional Industry Cross Reference90265A164
    BrandVARIED
    FinishPlain
    Head Diameter (Max.)16.00 mm
    Head Diameter (Min.)15.73 mm
    Head Height (Max.)7.00 mm
    Head Height (Min.)6.78 mm
    Head Side Height (Min.)1.00 mm
    Hex Socket Size5.00 mm
    Key Engagement4.20 mm
    MaterialStainless Steel
    Meets (Standard)ASME B18.3.3M-1986 (2002)
    Nominal Diameter8.00 mm
    Nominal Shoulder Diameter10.00 mm
    RoHSCompliant
    Shoulder DiameterM10
    Shoulder Diameter (Max.)9.99 mm
    Shoulder Diameter (Min.)9.95 mm
    Thread Length13.250 mm
    Thread SizeM8x1.25
    Thread TypeMetric Coarse
    TypeShoulder Bolt
    UnitsMetric
