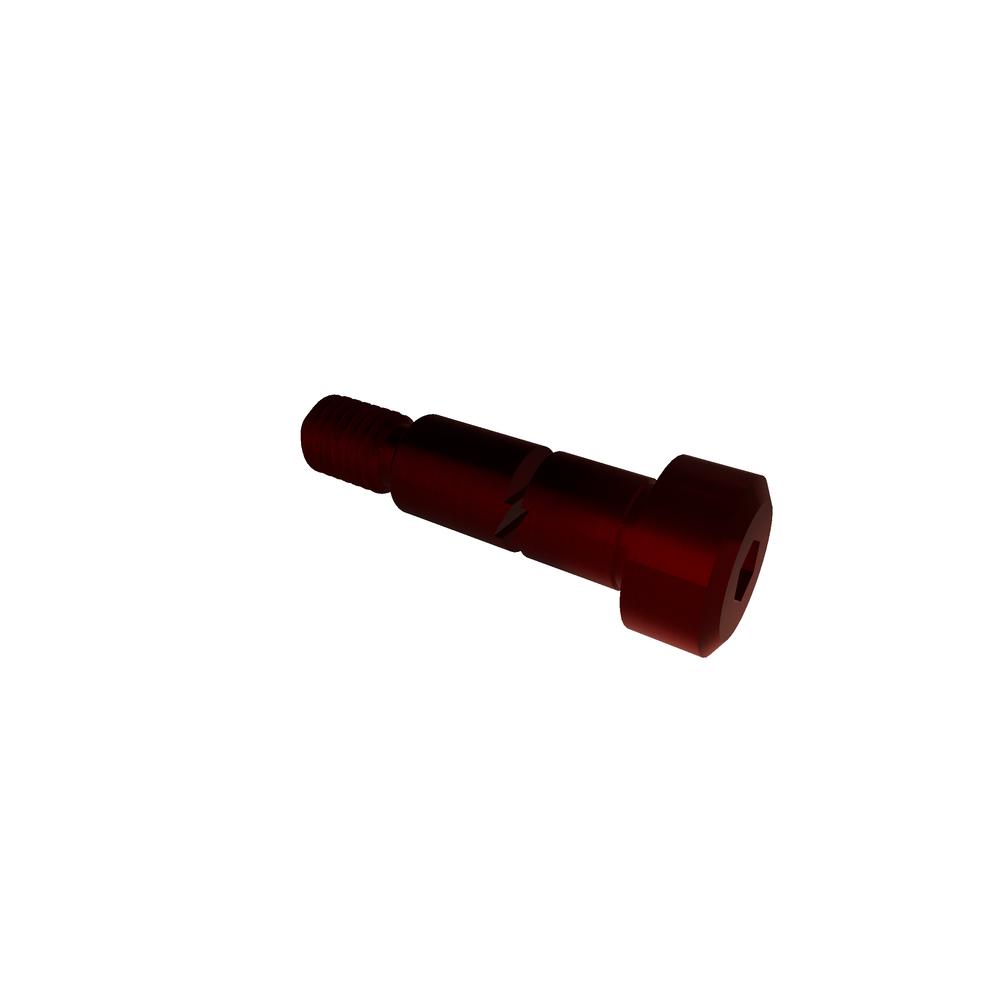

.10R30SHBA
M10 X 30 SHLDR BOLT ALLOY
Alternate Codes: 92981A305
M10 X 30 (M8-1.25) Shoulder Bolt ISO 7379 12.9 Alloy RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 8.00 mm |
| Length | 30mm |
| Thread Size | M8x1.25 |
| Finish | Plain |
| Nominal Shoulder Diameter | 10.00 mm |
| Material | Alloy |
| Thread Length | 13.250 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 4.20 mm |
| Head Side Height (Min.) | 1.00 mm |
| Shoulder Diameter | M10 |
| Shoulder Diameter (Min.) | 9.95 mm |
| Shoulder Diameter (Max.) | 9.99 mm |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Additional Industry Cross Reference | 92981A305 |
| Meets (Standard) | ASME B18.3.3M-1986 (2002) |
| Head Diameter (Max.) | 16.00 mm |
| Head Diameter (Min.) | 15.73 mm |
| Head Height (Max.) | 7.00 mm |
| Head Height (Min.) | 6.78 mm |
| Hex Socket Size | 5.00 mm |
