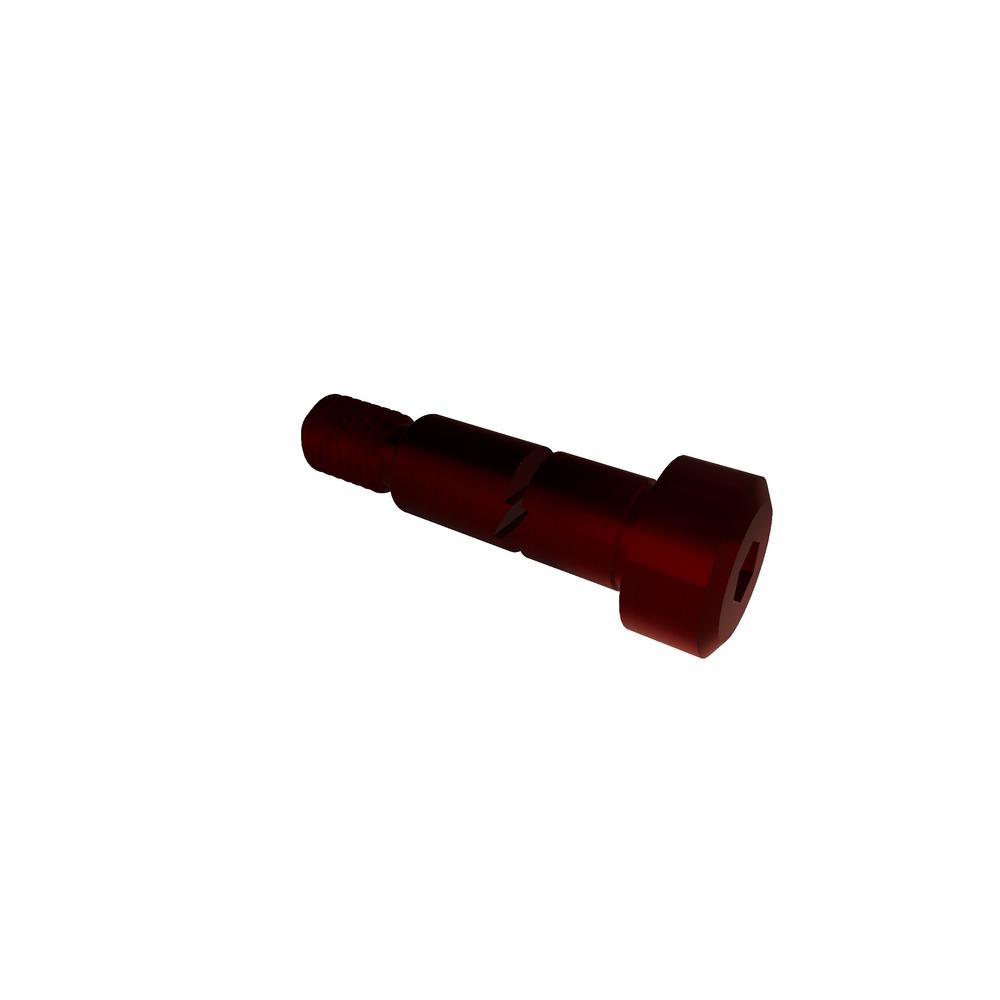

M10 X 40 SHLDR BOLT Alloy m8-1.25 thrd
.10R40SHBA
| Item Id | .10R40SHBA |
| Description | M10 X 40 SHLDR BOLT Alloy m8-1.25 thrd |
| Alternate Codes | 92981A306 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92981A306 |
| Brand | VARIED |
| Finish | Plain |
| Head Diameter (Max.) | 16.00 mm |
| Head Diameter (Min.) | 15.73 mm |
| Head Height (Max.) | 7.00 mm |
| Head Height (Min.) | 6.78 mm |
| Head Side Height (Min.) | 1.00 mm |
| Hex Socket Size | 5.00 mm |
| Key Engagement | 4.20 mm |
| Length | 40mm |
| Material | Alloy |
| Meets (Standard) | ASME B18.3.3M-1986 (2002) |
| Nominal Diameter | 8.00 mm |
| Nominal Shoulder Diameter | 10.00 mm |
| Shoulder Diameter | M10 |
| Shoulder Diameter (Max.) | 9.99 mm |
| Shoulder Diameter (Min.) | 9.95 mm |
| Thread Length | 13.250 mm |
| Thread Size | M8x1.25 |
| Thread Type | Metric Coarse |
| Type | Shoulder Bolt |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
