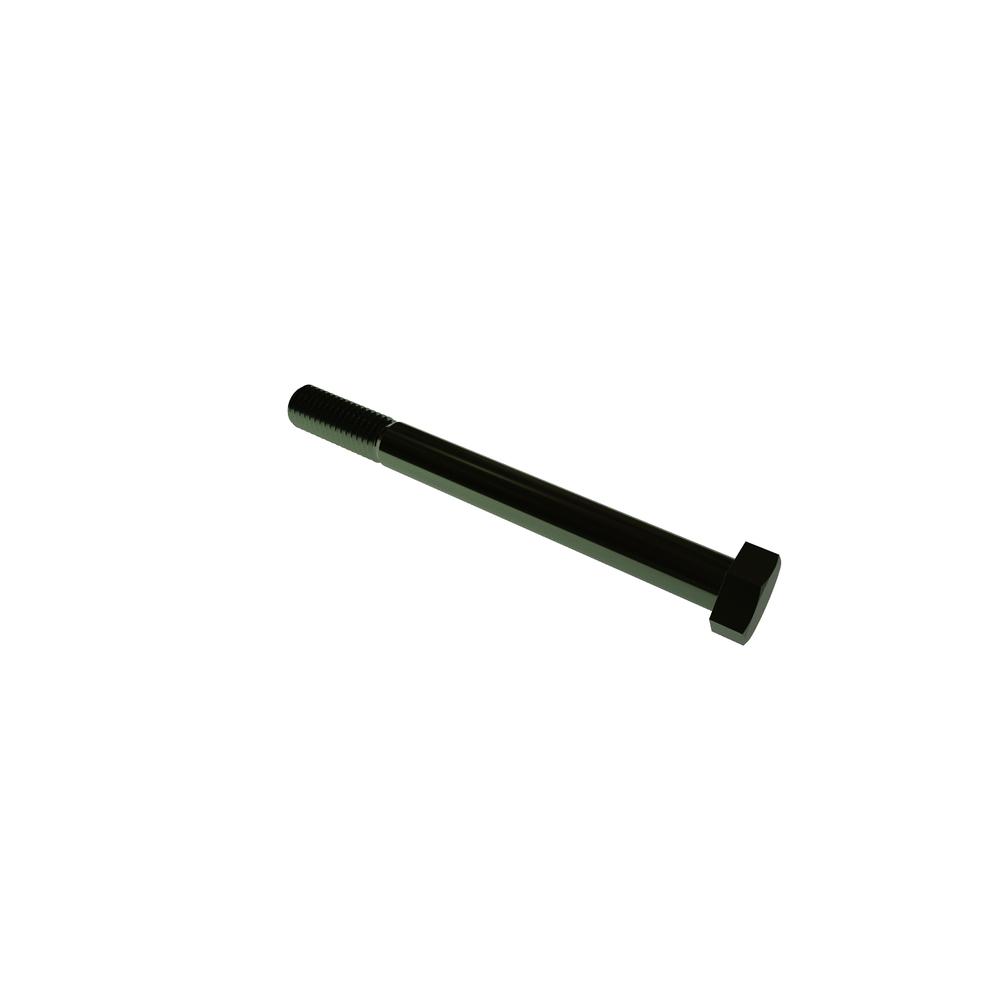

M12-1.75 X 120 HX HD 8.8 ZN CR3
.12C120HHDWR
| Item Id | .12C120HHDWR |
| Description | M12-1.75 X 120 HEX HD P/T 8.8 ZN RoHS |
| Alternate Codes | HC18121200 |
| Extended Description | "DIN931 " |
| Packaging | EA |
| Additional Industry Cross Reference | 91280A741 |
| Body Diameter (Max.) | 12.70 mm |
| Body Diameter (Min.) | 11.30 mm |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | 8.8 |
| Head Height (Max.) | 7.95 mm |
| Head Height (Min.) | 7.24 mm |
| Head Type | Hex |
| Length | 120mm |
| Material | Steel |
| Meets (Standard) | ASME B18.2.3.5M |
| Nominal Thread Size | 12.00 mm |
| RoHS | Compliant |
| Thread Size | M12x1.75 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Width Across Flat (Max.) | 18.00 mm |
| Width Across Flat (Min.) | 17.57 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
