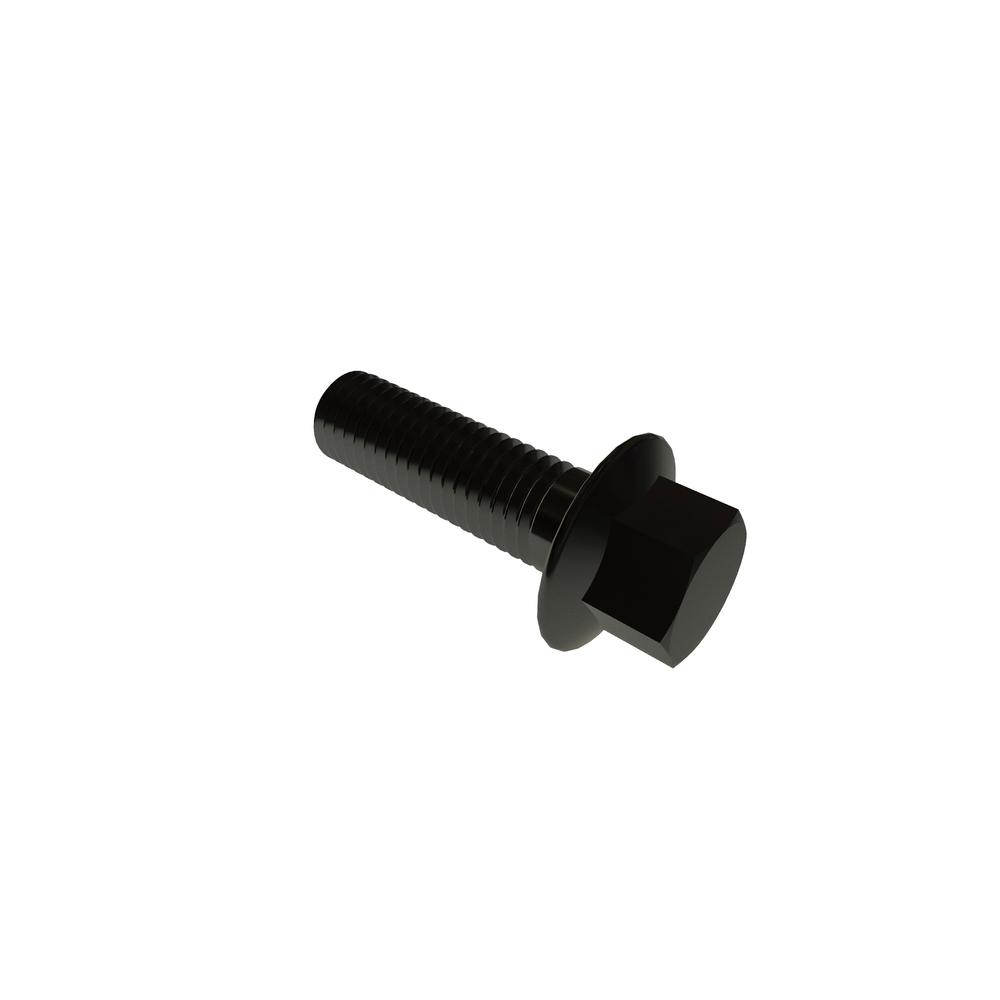

M12-1.75 X 40 HX FLANGE BOLT F/T 8.8 ZN
.12C40HFBWR/F
| Item Id | .12C40HFBWR/F |
| Description | M12-1.75 X 40 HX FLANGE BOLT F/T 8.8 ZN |
| Extended Description | CR3 RoHS |
| Packaging | EA |
| Brand | VARIED |
| Finish | Zinc |
| Flange Diameter (Max.) | 24.70 mm |
| Grade | 8.8 |
| Head Height (Max.) | 12.10 mm |
| Head Type | Hex Flange Bolt |
| Material | Steel |
| Meets (Standard) | ASME B18.2.3.4M |
| Nominal Diameter | 12.00 mm |
| Thread Length | 34.7 mm |
| Thread Size | M12x1.75 |
| Thread Type | Metric Coarse |
| Total Length | 40mm |
| Total Shank Diameter (Max.) | 12.00 mm |
| Total Shank Diameter (Min.) | 11.73 mm |
| Type | Flange Bolt |
| Units | Metric |
| Width Across Flat (Max.) | 15.00 mm |
| Width Across Flat (Min.) | 14.57 mm |
| Wrenching Height (Min.) | 5.40 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
