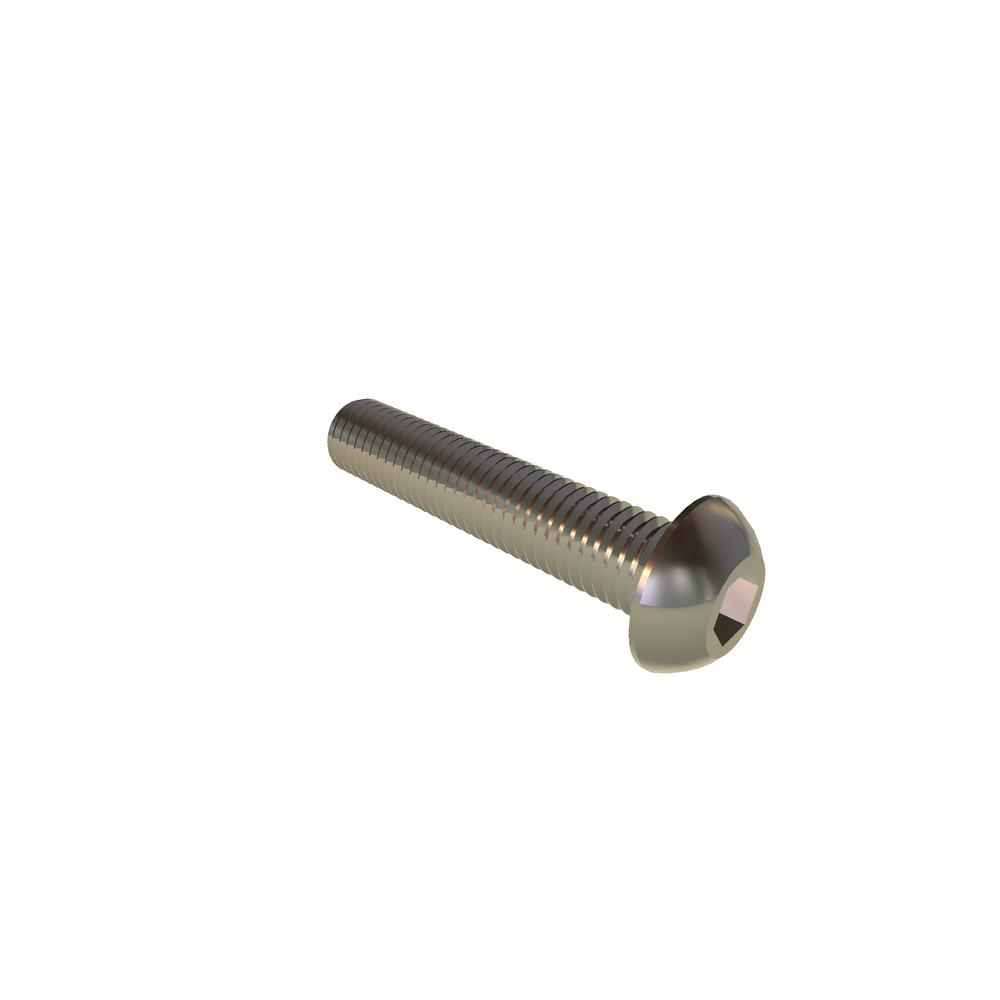

M12-1.75 X 60 BUT SOC SST RoHS
.12C60BHCS
| Item Id | .12C60BHCS |
| Description | M12-1.75 X 60 BUT SOC SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92095A442 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 14.20 mm |
| Fillet Transition Diameter (Min.) | 13.20 mm |
| Finish | Plain |
| Head Diameter (Max.) | 21.00 mm |
| Head Diameter (Min.) | 20.48 mm |
| Head Height (Max.) | 6.60 mm |
| Head Height (Min.) | 6.24 mm |
| Head Side Height (Ref.) | 0.80 mm |
| Head Type | Button |
| Hex Socket Size | 8.00 mm |
| Key Engagement | 4.16 mm |
| Length | 60mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 12 mm |
| RoHS | Compliant |
| Thread Size | M12x1.75 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
