  • Item Id: .12NHCL3

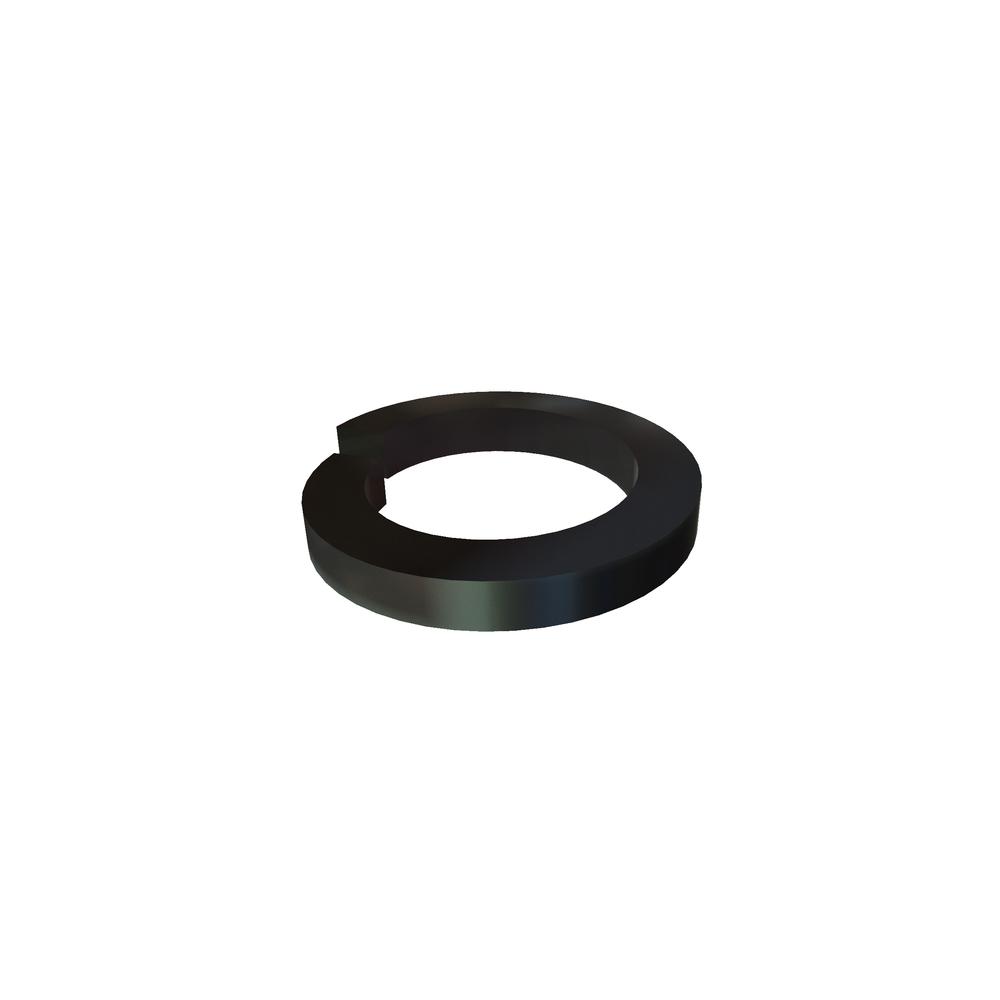

  • Description: M12 HIGH COLLAR L/W 316 SST RoHS
  • Alternate Codes: 94241A570
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.386$0.203$0.161$0.149Larger Quantities
  • Extended Description: DIN7980
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference94241A570 94241A570
    BrandVARIED
    FinishPlain
    ID (Max.)12.70 mm
    ID (Min.)12.20 mm
    Inside Diameter (Min.)12.20 mm
    Material316 Stainless Steel
    Meets (Standard)DIN 7980
    Nominal Diameter12.00 mm
    OD521
    OD (Max.)18.00 mm
    Outside Diameter (Max.)18.00 mm
    Recommended For Screw SizeM12
    RoHSCompliant
    Thickness (Max.)2.60 mm
    Thickness (Min.)2.40 mm
    TypeHigh Collar Lock Washer
    UnitsMetric

Item Substitutes

Item IdDescription
.12NHCLSM12 HIGH COLLAR L/W SST RoHSView Details
