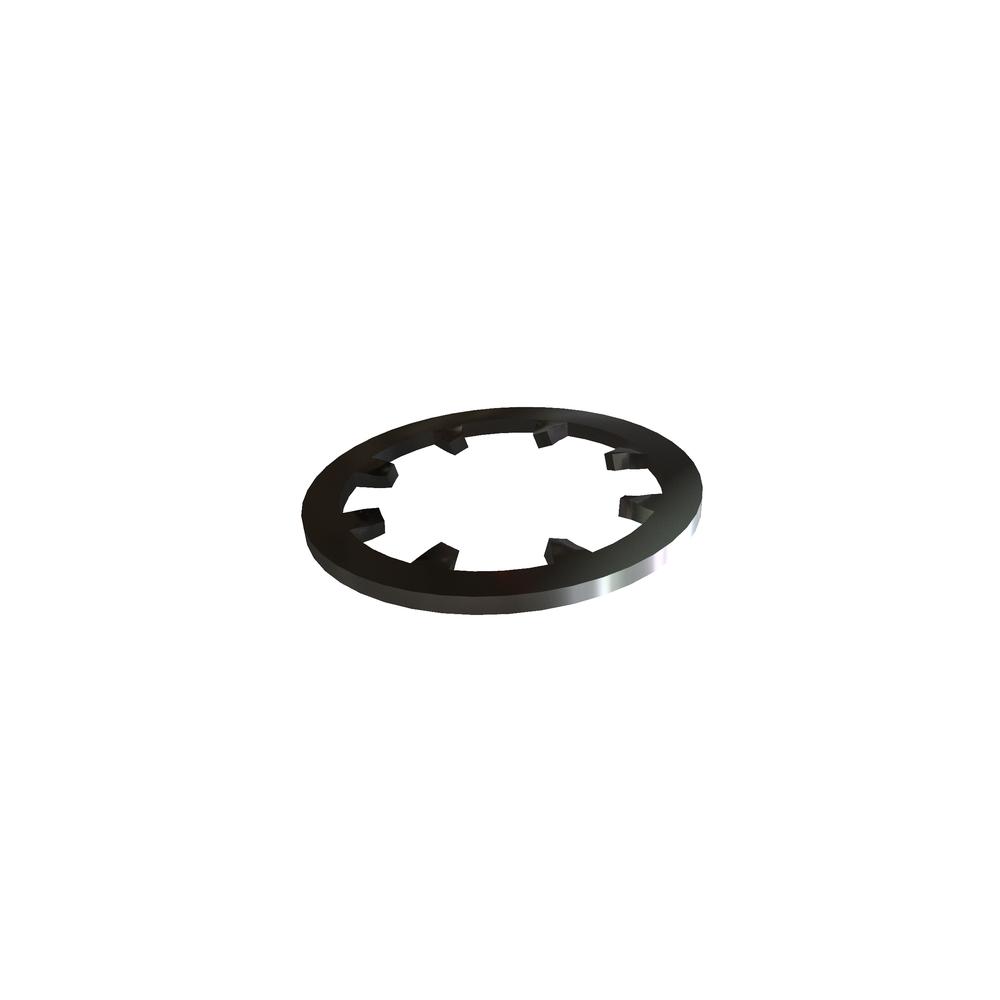

Defaultimage2 .12NILWS M12 INT TOOTH L/W SST RoHS



  • Item Id: .12NILWS
  • Description: M12 INT TOOTH L/W SST RoHS
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 9991000 to 2499Call For
    $0.265$0.140$0.111$0.102$0.086Larger Quantities
  • Extended Description: DIN 6797J
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
    • BrandVARIED
    FinishPlain
    ID (Max.)12.70 mm
    ID (Min.)12.30 mm
    Inside Diameter (Min.)12.30 mm
    MaterialStainless Steel
    OD524
    OD (Max.)20.25 mm
    OD (Min.)19.50 mm
    Outside Diameter (Max.)20.25 mm
    RoHSCompliant
    Thickness (Max.)1.00 mm
    Thickness (Min.)0.80 mm
    TypeInternal Tooth Lock Washer
    UnitsMetric
    Washer SizeM12
