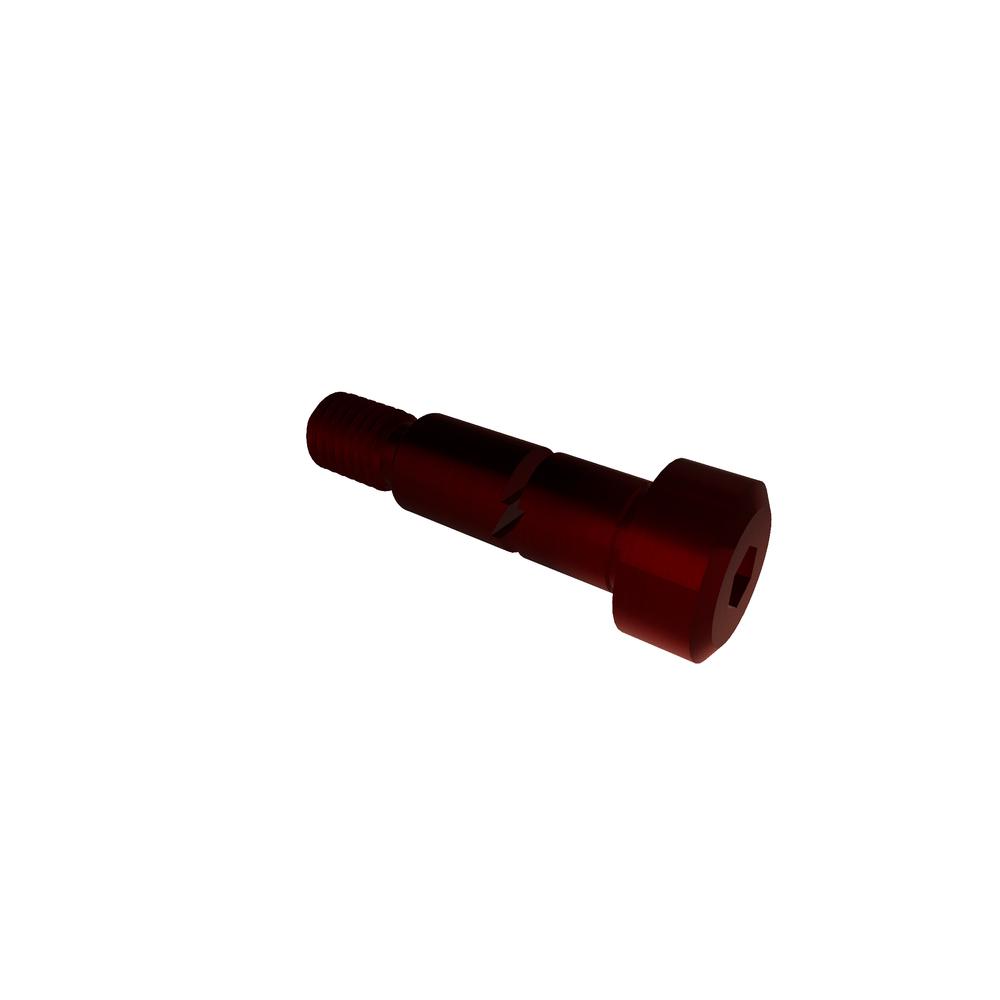

M12 X 20 SHLDR BOLT ALLOY
.12R20SHBA
| Item Id | .12R20SHBA |
| Description | M12 X 20 SHLDR BOLT ALLOY |
| Alternate Codes | 92981A403 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92981A403 |
| Brand | VARIED |
| Finish | Plain |
| Head Diameter (Max.) | 18.27 mm |
| Head Diameter (Min.) | 17.30 mm |
| Head Height (Max.) | 9.00 mm |
| Head Height (Min.) | 8.78 mm |
| Head Side Height (Min.) | 1.20 mm |
| Key Engagement | 4.90 mm |
| Length | 20mm |
| Material | Alloy |
| Meets (Standard) | shoulder_bolt_metric.pdf |
| Nominal Diameter | 10.00 mm |
| Nominal Shoulder Diameter | 12.00 mm |
| Shoulder Diameter | M12 |
| Shoulder Diameter (Max.) | 11.98 mm |
| Shoulder Diameter (Min.) | 11.94 mm |
| Thread Length | 16.4 mm |
| Thread Size | M10x1.5 |
| Thread Type | Metric Coarse |
| Type | Shoulder Bolt |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
