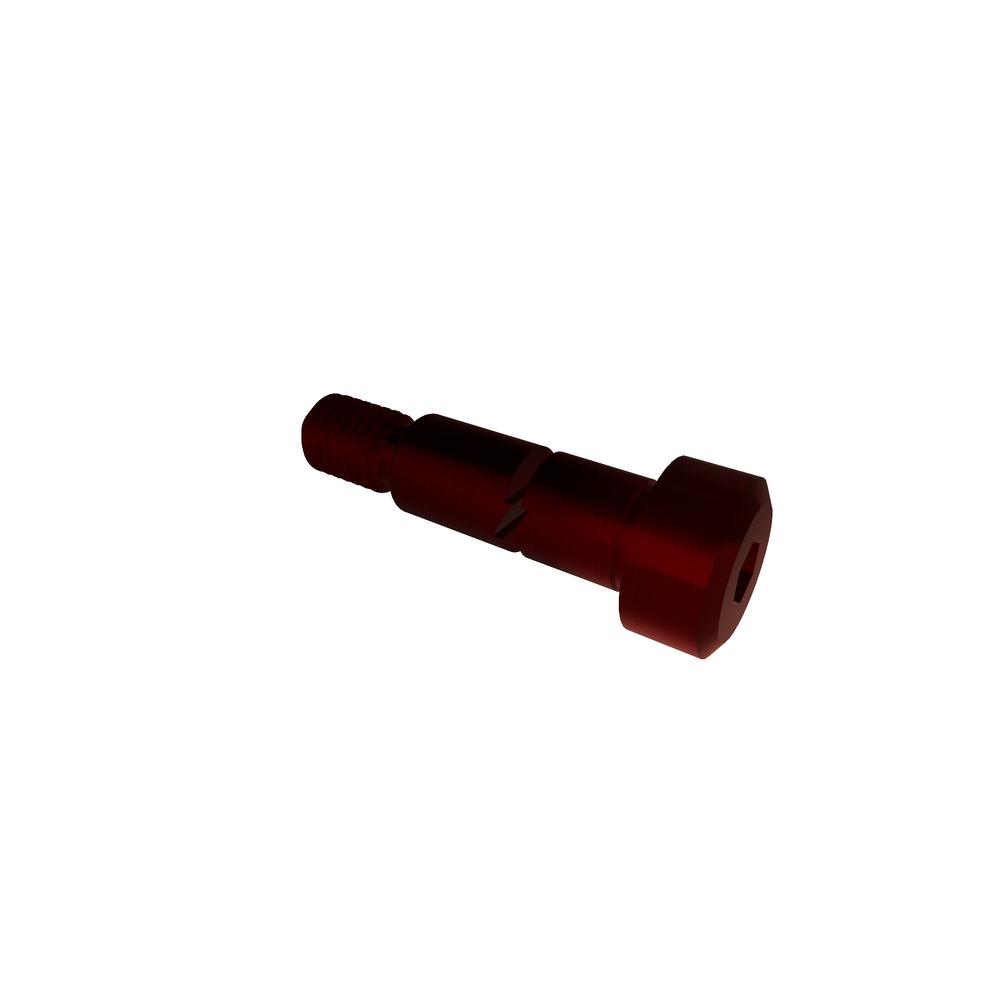

M12 X 25 SHLDR BOLT ALLOY




  • Item Id: .12R25SHBA
  • Description: M12 X 25 SHLDR BOLT ALLOY
  • Alternate Codes: 92981A404
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.214$0.113$0.089$0.082Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92981A404
    BrandVARIED
    FinishPlain
    Head Diameter (Max.)18.27 mm
    Head Diameter (Min.)17.30 mm
    Head Height (Max.)9.00 mm
    Head Height (Min.)8.78 mm
    Head Side Height (Min.)1.20 mm
    Key Engagement4.90 mm
    MaterialAlloy
    Meets (Standard)shoulder_bolt_metric.pdf
    Nominal Diameter10.00 mm
    Nominal Shoulder Diameter12.00 mm
    Shoulder DiameterM12
    Shoulder Diameter (Max.)11.98 mm
    Shoulder Diameter (Min.)11.94 mm
    Thread Length16.4 mm
    Thread SizeM10x1.5
    Thread TypeMetric Coarse
    TypeShoulder Bolt
    UnitsMetric
