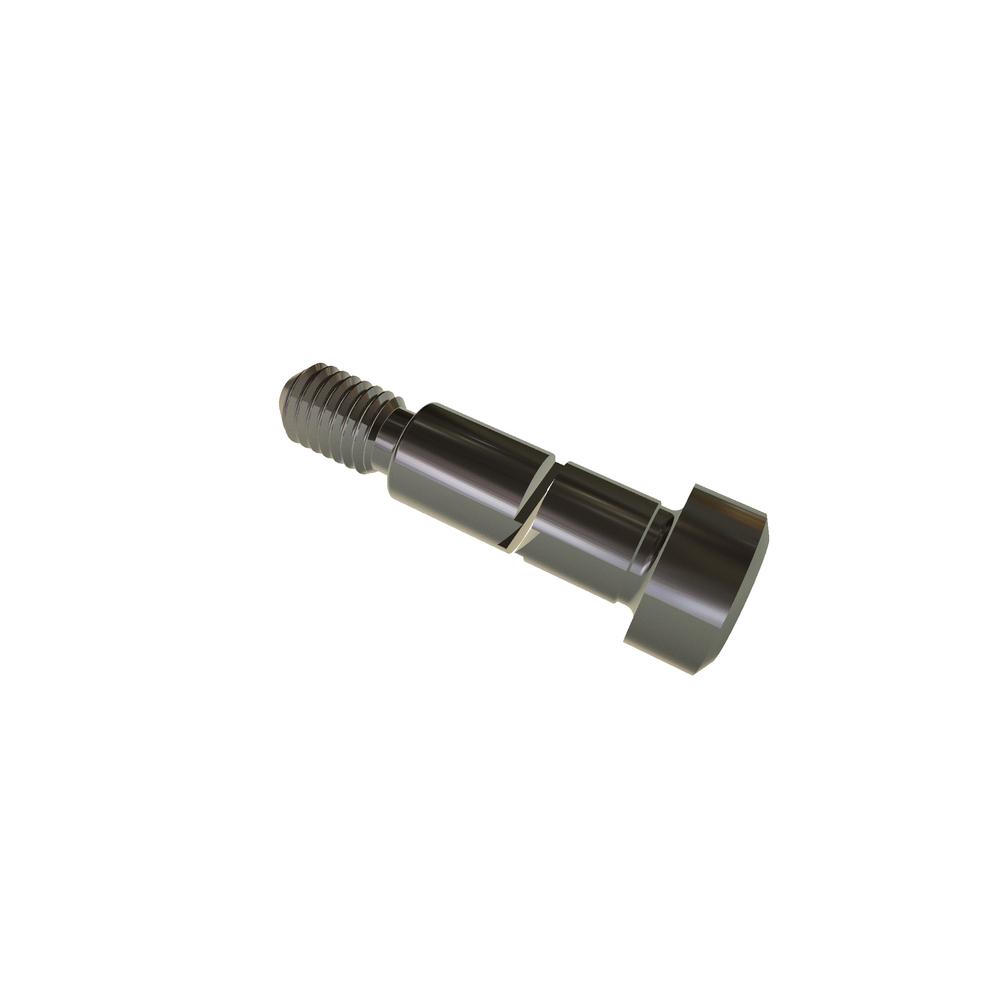

Image for reference purposes only. Actual product may vary.
.12R35SHBS
M12 X 35 SHLDR BOLT SST RoHS
Alternate Codes: N/A
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 10.00 mm |
| Length | 35mm |
| Thread Size | M10x1.5 |
| Finish | Plain |
| Nominal Shoulder Diameter | 12.00 mm |
| Material | Stainless Steel |
| Thread Length | 16.4 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 4.90 mm |
| Head Side Height (Min.) | 1.20 mm |
| Shoulder Diameter | M12 |
| Shoulder Diameter (Min.) | 11.94 mm |
| Shoulder Diameter (Max.) | 11.98 mm |
| Brand | VARIED |
| Type | Shoulder Bolt |
| RoHS | Compliant |
| Meets (Standard) | shoulder_bolt_metric.pdf |
| Head Diameter (Max.) | 18.27 mm |
| Head Diameter (Min.) | 17.30 mm |
| Head Height (Max.) | 9.00 mm |
| Head Height (Min.) | 8.78 mm |
