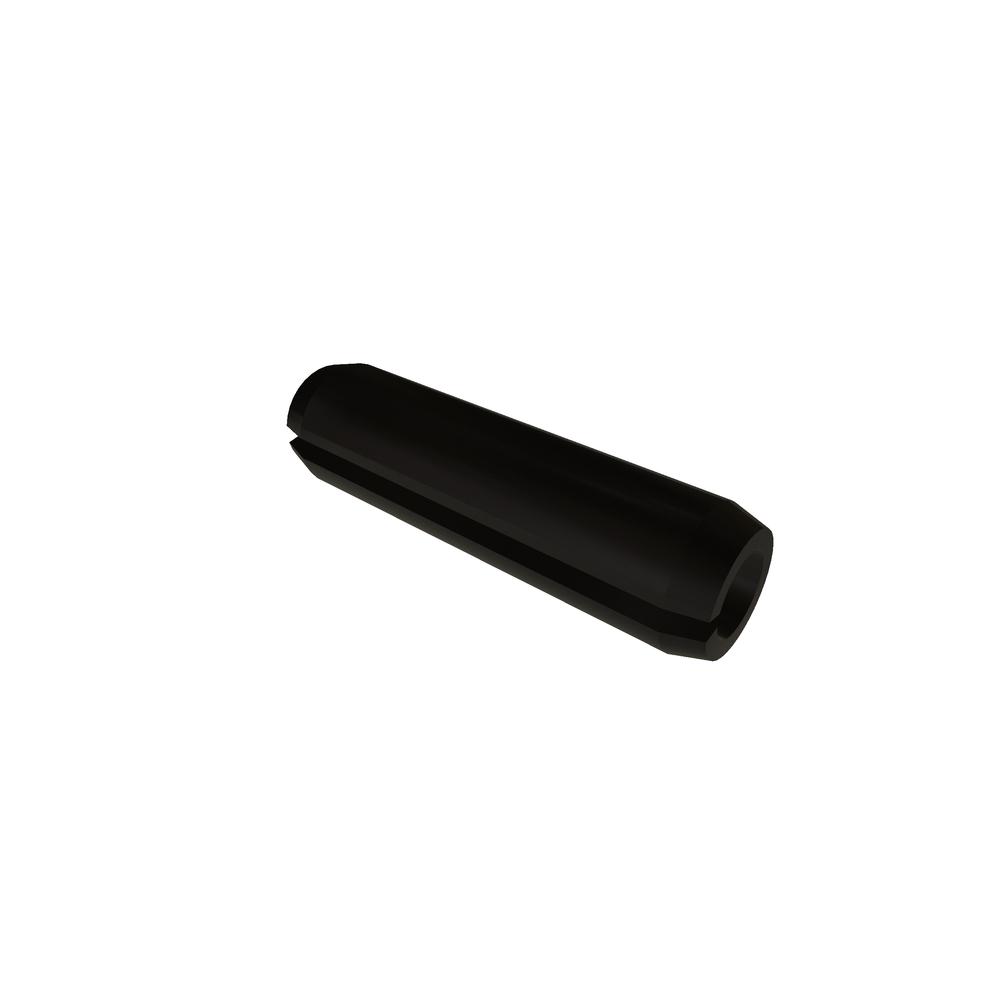

M1.5 X 6 ROLL PIN ISO8752 ALLOY RoHS
.15R6ROLA
| Item Id | .15R6ROLA |
| Description | M1.5 X 6 ROLL PIN ISO8752 ALLOY RoHS |
| Alternate Codes | 91611A081 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91611A081 |
| Brand | VARIED |
| Chamfer Diameter | 1.4 mm |
| Chamfer Length (Max.) | 0.7 mm |
| Chamfer Length (Min.) | 0.15 mm |
| Finish | Plain |
| Material | Alloy Steel |
| Nominal Diameter | 1.5 mm |
| Pin Diameter (Max.) | 1.66 mm |
| Pin Diameter (Min.) | 1.58 mm |
| Recommended Hole Size (Max.) | 1.56 mm |
| Recommended Hole Size (Min.) | 1.5 mm |
| Units | Metric |
| Wall Thickness | 0.35 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
