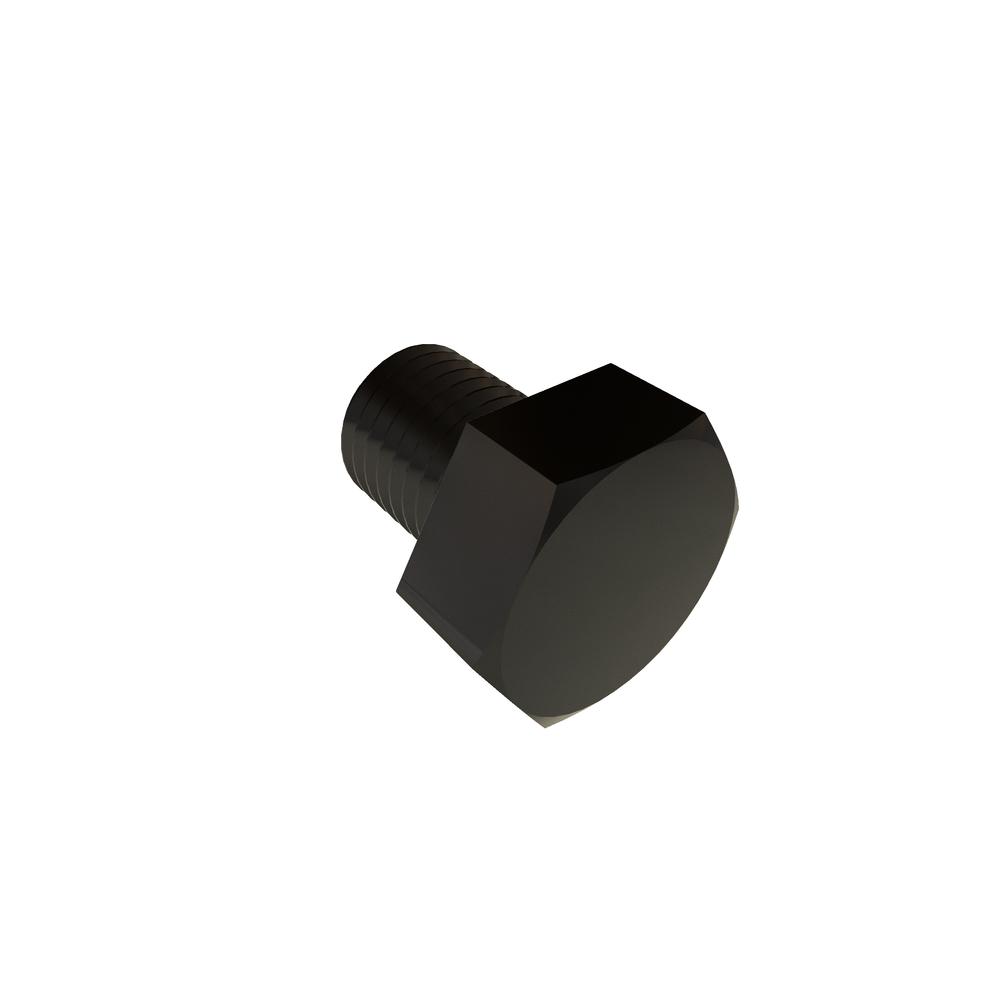

Image for reference purposes only. Actual product may vary.
.16C20HHDWB
M16-2.0 X 20 HX HD 8.8 BLK RoHS
Alternate Codes: N/A
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In stock
| Meets (Standard) | ASME B18.2.3.5M |
| Length | 20mm |
| Thread Size | M16x2 |
| Head Height (Min.) | 9.68 mm |
| Body Diameter (Max.) | 16.70 mm |
| Head Height (Max.) | 10.75 mm |
| Body Diameter (Min.) | 15.30 mm |
| Nominal Thread Size | 16.00 mm |
| Width Across Flat (Min.) | 23.16 mm |
| Thread Type | Metric Coarse |
| Material | Steel |
| Width Across Flat (Max.) | 24.00 mm |
| RoHS | Compliant |
| Finish | Black Oxide |
| Head Type | Hex |
| Grade | 8.8 |
| Brand | VARIED |
| Units | Metric |
