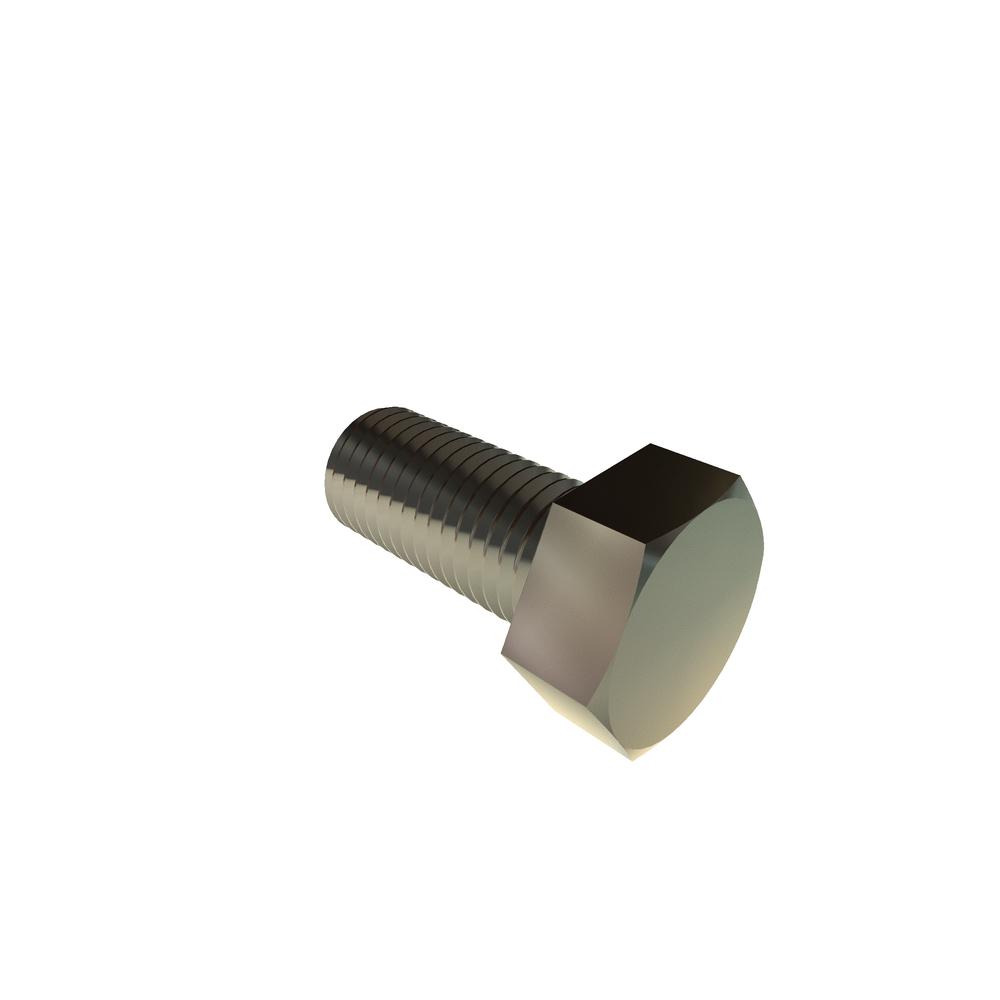

M16-2.0 X 35 HX HD SST RoHS
.16C35HHDS
| Item Id | .16C35HHDS |
| Description | M16-2.0 X 35 HEX HD SST RoHS |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 91287A222 |
| Body Diameter (Max.) | 16.70 mm |
| Body Diameter (Min.) | 15.30 mm |
| Brand | VARIED |
| Finish | Plain |
| Grade | Other |
| Head Height (Max.) | 10.75 mm |
| Head Height (Min.) | 9.68 mm |
| Head Type | Hex |
| Length | 35mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.2.3.5M |
| Nominal Thread Size | 16.00 mm |
| RoHS | Compliant |
| Thread Size | M16x2 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Width Across Flat (Max.) | 24.00 mm |
| Width Across Flat (Min.) | 23.16 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
