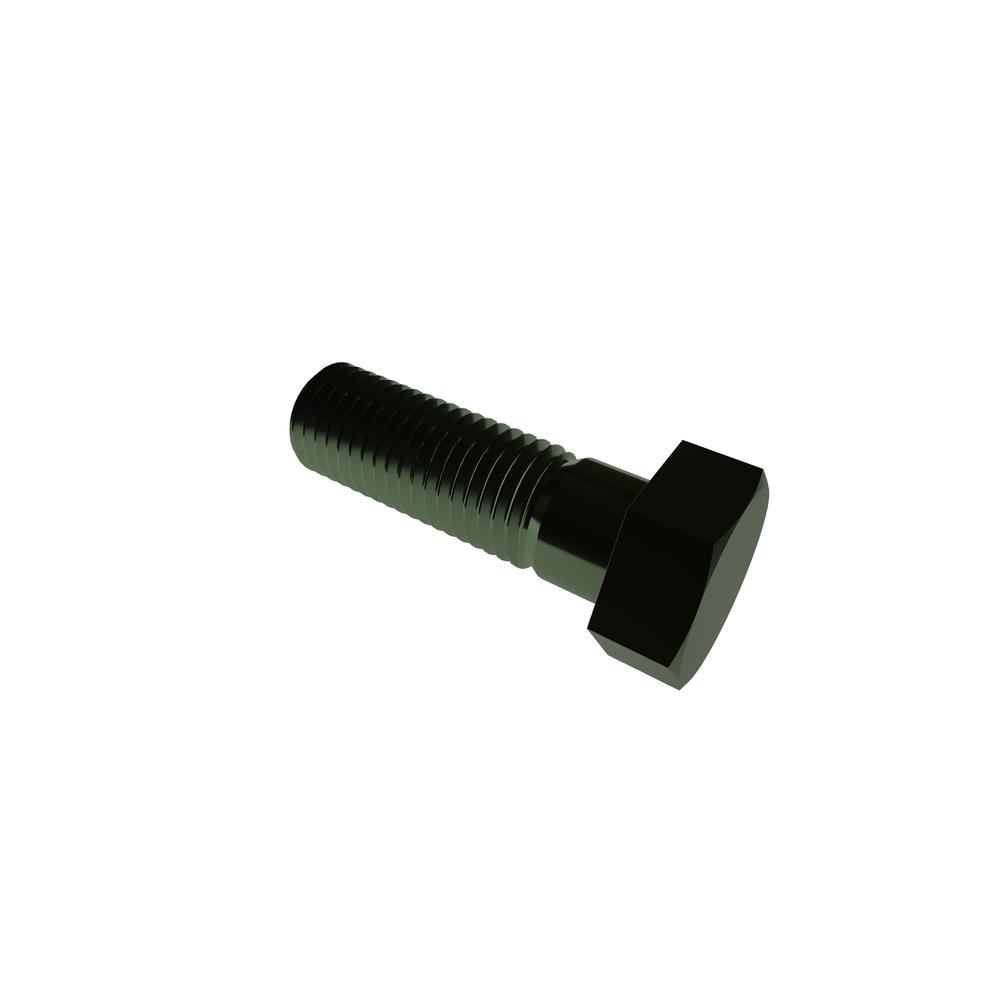

M16-2.0 X 50 HX HD 8.8 ZN CR3
.16C50HHDWR
| Item Id | .16C50HHDWR |
| Description | M16-2.0 X 50 HEX HD 8.8 ZN CR3 RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91280A844 |
| Body Diameter (Max.) | 16.70 mm |
| Body Diameter (Min.) | 15.30 mm |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | 8.8 |
| Head Height (Max.) | 10.75 mm |
| Head Height (Min.) | 9.68 mm |
| Head Type | Hex |
| Length | 50mm |
| Material | Steel |
| Meets (Standard) | ASME B18.2.3.5M |
| Nominal Thread Size | 16.00 mm |
| RoHS | Compliant |
| Thread Size | M16x2 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Width Across Flat (Max.) | 24.00 mm |
| Width Across Flat (Min.) | 23.16 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
