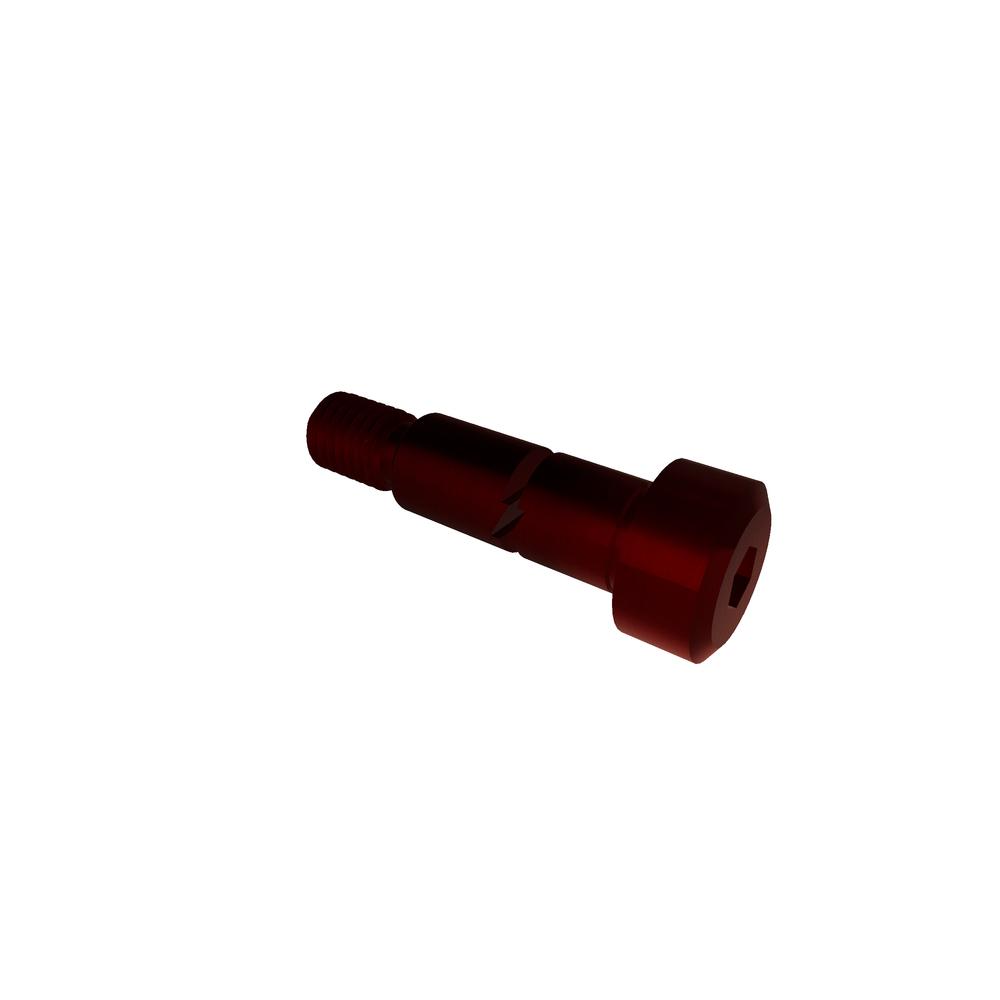

.16R20SHBA
M16 X 20 SHLDR BOLT ALLOY M12-1.75 THD
Alternate Codes: 92981A495
"M12-1.75 thread, ISO 7379"
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|---|---|
| $7.277 | $6.076 | $5.415 | $4.900 | $4.704 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M12x1.75 |
| Material | Alloy |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 12.00 mm |
| Key Engagement | 6.60 mm |
| Head Side Height (Min.) | 1.60 mm |
| Shoulder Diameter | M16 |
| Nominal Shoulder Diameter | 16.00 mm |
| Shoulder Diameter (Min.) | 15.94 mm |
| Shoulder Diameter (Max.) | 15.98 mm |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Additional Industry Cross Reference | 92981A495 |
| Length | 20mm |
| Meets (Standard) | ASME B18.3.3M-1986 (2002) |
| Head Diameter (Max.) | 24.00 mm |
| Head Diameter (Min.) | 23.67 mm |
| Head Height (Max.) | 11.00 mm |
| Head Height (Min.) | 10.73 mm |
| Hex Socket Size | 8.00 mm |
| Thread Length | 18.4 mm |
