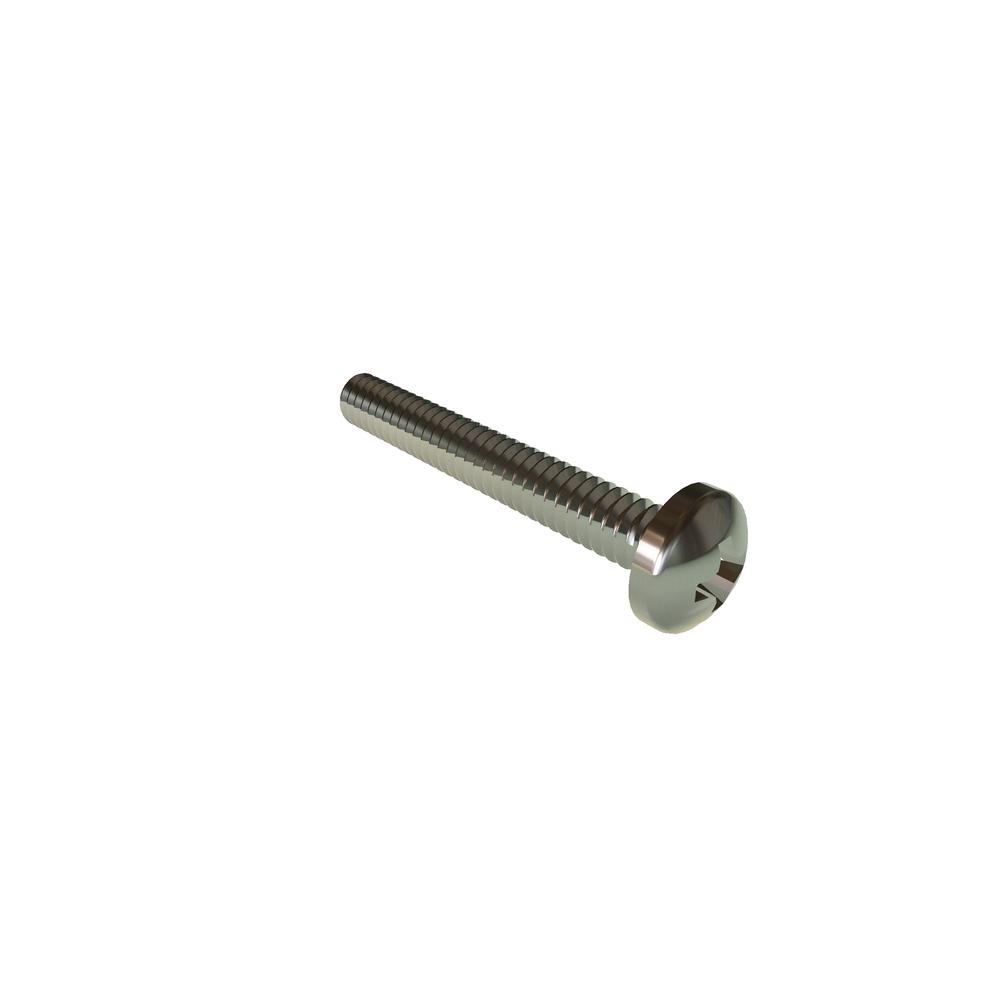

Defaultimage2 .16S12PPMS M1.6-.35 X 12 PH PAN DIN7985 SST



  • Item Id: .16S12PPMS
  • Description: M1.6-.35 X 12 PH PAN DIN7985 SST
  • Alternate Codes: 92000A007
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.267$0.141$0.111$0.103Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
    • Additional Industry Cross Reference92000A007 92000A007
    BrandVARIED
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)3.20 mm
    Head Diameter (Min.)2.90 mm
    Head Height (Max.)1.30 mm
    Head Height (Min.)1.16 mm
    Head Radius (Min.)2.50 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)ISO 7045
    Nominal Diameter1.60 mm
    Recess Depth (Max.)0.95 mm
    Recess Depth (Min.)0.70 mm
    Recess Diameter1.70 mm
    RoHSCompliant
    Thread SizeM1.6x0.35
    Thread TypeMetric Coarse
    UnitsMetric
