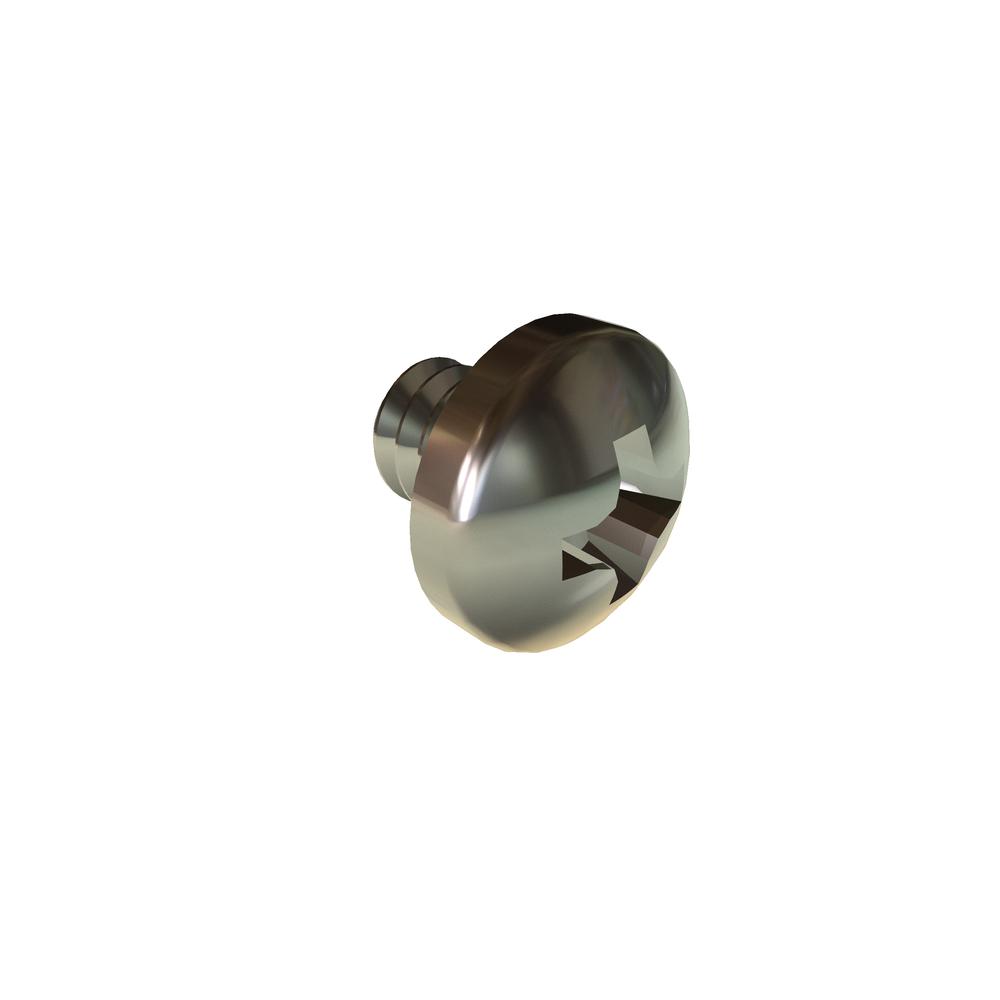

M1.6 -0.35 X 2 PHIL PAN SST

.16S2PPMS

Item Id.16S2PPMS
DescriptionM1.6 -0.35 X 2 PHIL PAN DIN7985 SST RoHS
Alternate Codes92000A040
Extended Description
PackagingEA
Additional Industry Cross Reference92000A040 92000A040
BrandVARIED
Drive TypePhillips
FinishPlain
Head Diameter (Max.)3.20 mm
Head Diameter (Min.)2.90 mm
Head Height (Max.)1.30 mm
Head Height (Min.)1.16 mm
Head Radius (Min.)2.50 mm
Head TypePan
Length2mm
MaterialStainless Steel
Meets (Standard)ISO 7045
Nominal Diameter1.60 mm
Recess Depth (Max.)0.95 mm
Recess Depth (Min.)0.70 mm
Recess Diameter1.70 mm
Thread SizeM1.6x0.35
Thread TypeMetric Coarse
UnitsMetric
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
