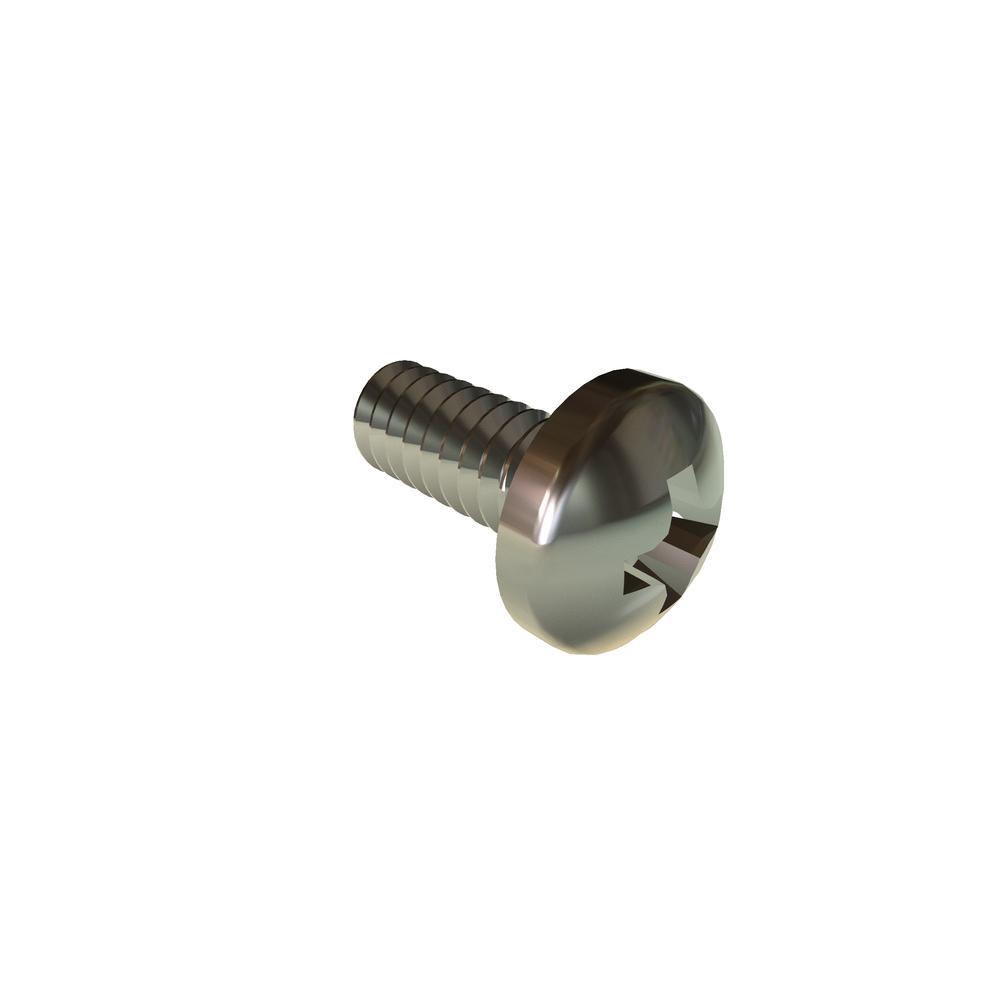

Image for reference purposes only. Actual product may vary.
.16S4PPMS/CCP
M1.6-.35 X 4 PH PAN CCP CLN 100/BAG SST
Alternate Codes: N/A
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 4mm |
| Thread Size | M1.6x0.35 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 1.60 mm |
| Head Type | Pan |
| Recess Diameter | 1.70 mm |
| Head Radius (Min.) | 2.50 mm |
| Recess Depth (Min.) | 0.70 mm |
| Recess Depth (Max.) | 0.95 mm |
| RoHS | Compliant |
| Meets (Standard) | ISO 7045 |
| Head Diameter (Max.) | 3.20 mm |
| Head Diameter (Min.) | 2.90 mm |
| Head Height (Max.) | 1.30 mm |
| Head Height (Min.) | 1.16 mm |
