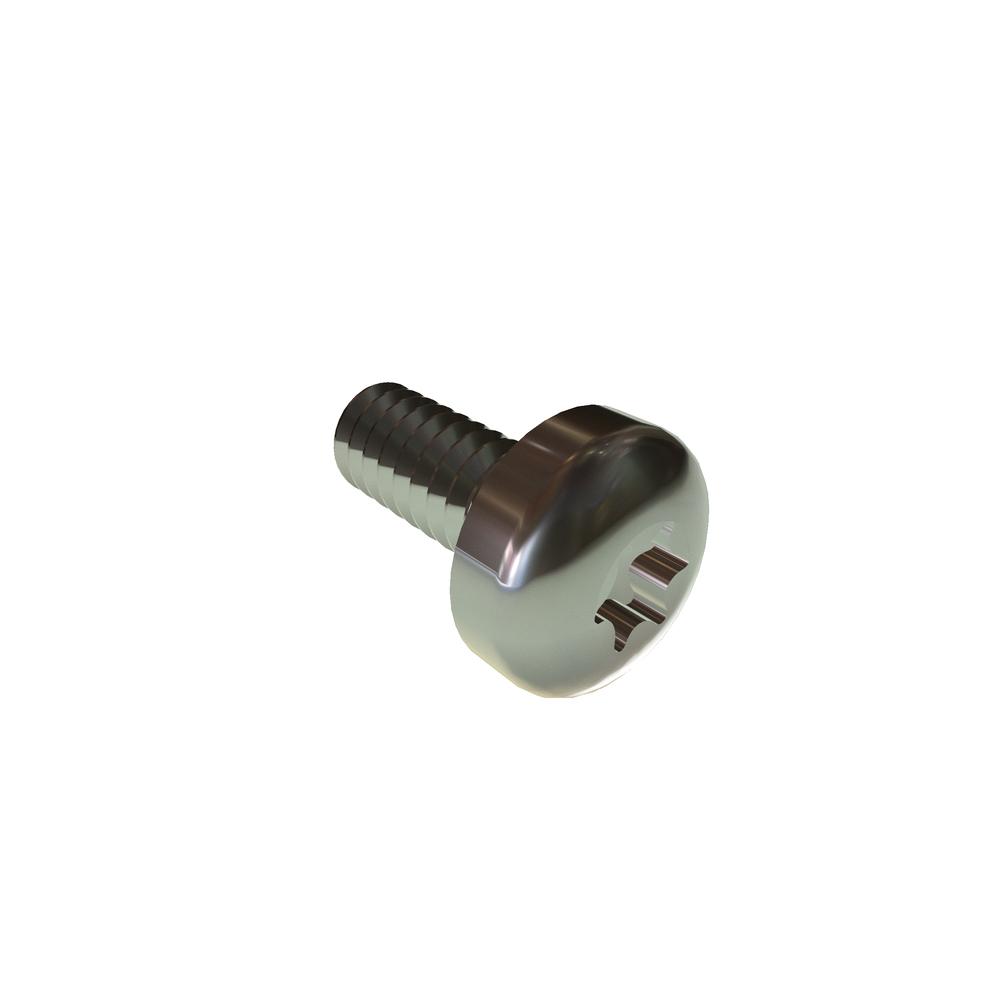

M1.6-.35 X 4 TORX T-5 PAN HD M/S SST

.16S4XPMS

Item Id.16S4XPMS
DescriptionM1.6 X 4 PAN HEAD TORX SST RoHS
Extended Description.35 PITCH, T-5 DRIVE
PackagingEA
BrandVARIED
Drive SizeT5
Drive TypeTorx
FinishPlain
Head Diameter (Max.)3.20 mm
Head Diameter (Min.)2.90 mm
Head Height (Max.)1.30 mm
Head Height (Min.)1.16 mm
Head Radius (Min.)2.50 mm
Head TypePan
Length4mm
MaterialStainless Steel
Meets (Standard)ISO 14583
Nominal Diameter1.60 mm
Recess Depth (Max.)0.47 mm
Recess Diameter1.42 mm
Thread SizeM1.6x0.35
Thread TypeMetric Coarse
UnitsMetric
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
