  • Item Id: .16S5PPMS

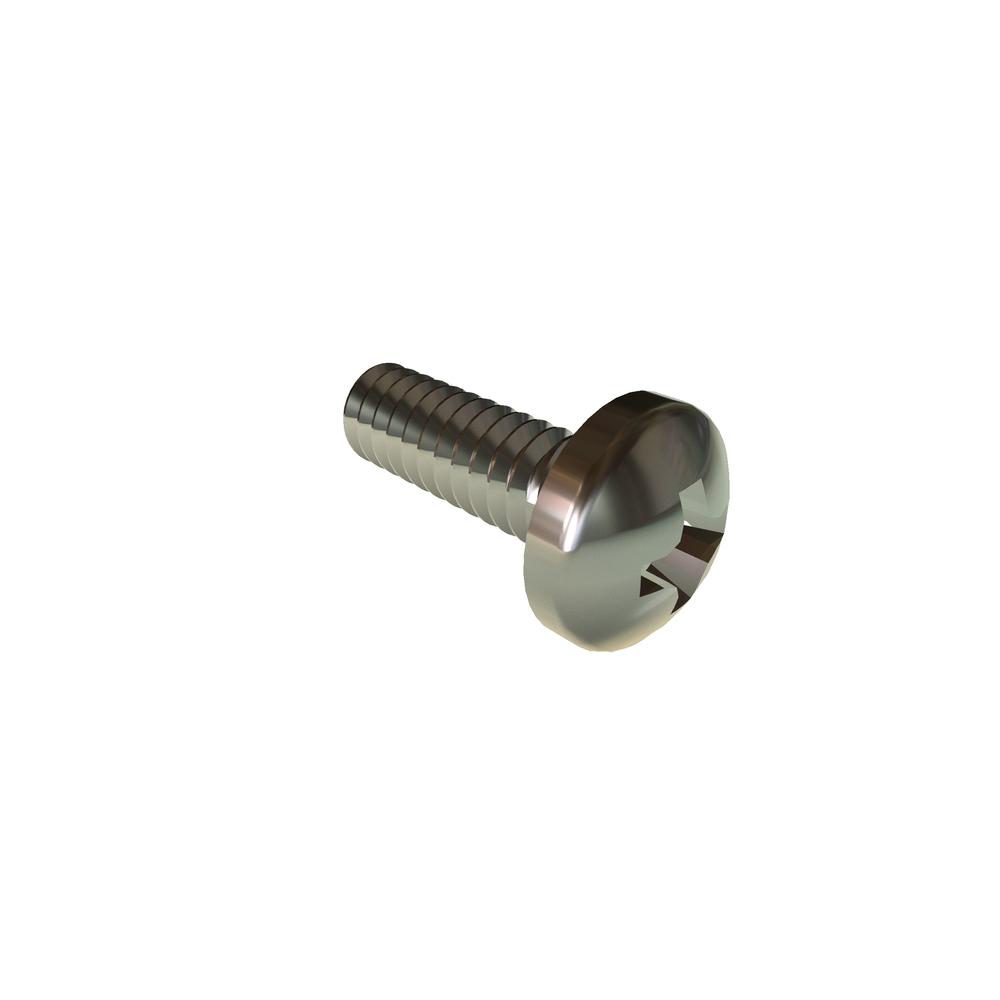

  • Description: M1.6-.35 X 5 PH PAN SST RoHS
  • Alternate Codes: 92000A003, BN660 M1.6X5
  • Quantity Discounts:
    1 to 499500 to 9991000 to 24992500 to 4999Call For
    $0.108$0.066$0.048$0.037Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92000A003 92000A003
    Drive TypePhillips
    Head Diameter (Max.)3.20 mm
    Head Diameter (Min.)2.90 mm
    Head Height (Max.)1.30 mm
    Head Height (Min.)1.16 mm
    Head Radius (Min.)2.50 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)ISO 7045
    Nominal Diameter1.60 mm
    Recess Depth (Max.)0.95 mm
    Recess Depth (Min.)0.70 mm
    Recess Diameter1.70 mm
    Thread SizeM1.6x0.35
    Thread TypeMetric Coarse
