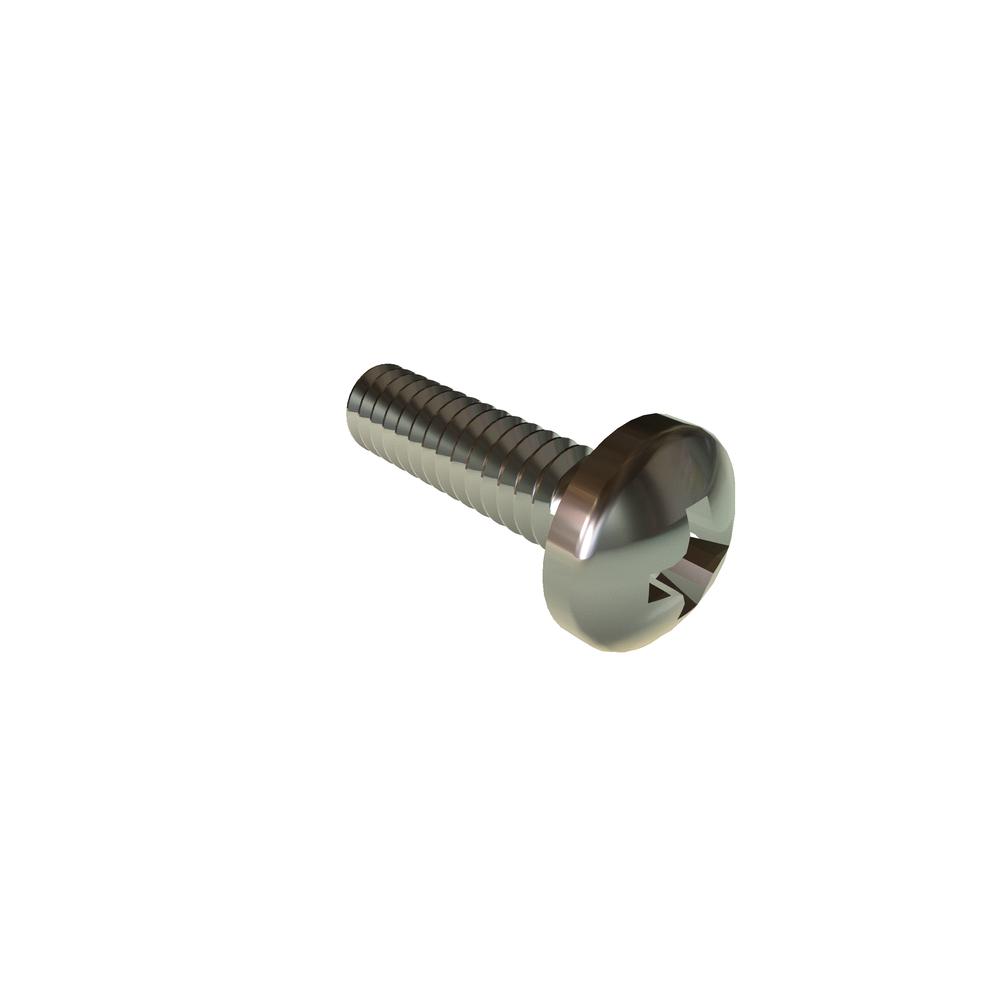

M1.6-.35 X 6 PH PAN SST RoHS
.16S6PPMS
| Item Id | .16S6PPMS |
| Description | M1.6-.35 X 6 PHIL PAN DIN7985 SST RoHS |
| Alternate Codes | 92000A004, BN660 M1.6X6 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92000A004 92000A004 |
| Brand | VARIED |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 3.20 mm |
| Head Diameter (Min.) | 2.90 mm |
| Head Height (Max.) | 1.30 mm |
| Head Height (Min.) | 1.16 mm |
| Head Radius (Min.) | 2.50 mm |
| Head Type | Pan |
| Material | Stainless Steel |
| Meets (Standard) | ISO 7045 |
| Nominal Diameter | 1.60 mm |
| Recess Depth (Max.) | 0.95 mm |
| Recess Depth (Min.) | 0.70 mm |
| Recess Diameter | 1.70 mm |
| RoHS | Compliant |
| Thread Size | M1.6x0.35 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
