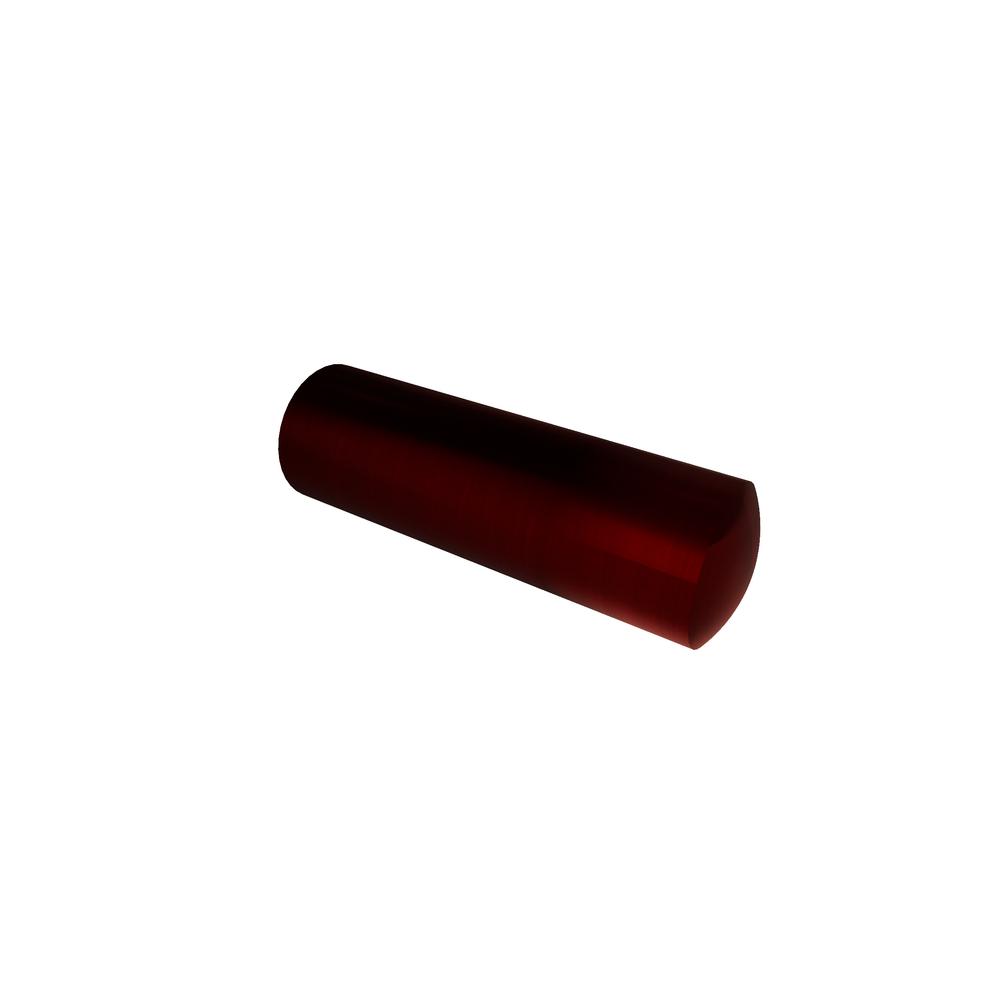

M1 X 10 DOWEL PIN ALLOY RoHS
.1R10DOWA
| Item Id | .1R10DOWA |
| Description | M1 X 10 DOWEL PIN ALLOY RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | DIN6325 |
| Brand | VARIED |
| Heat Treat | Hardened |
| Length | 10mm |
| Material | Alloy Steel |
| Nominal Diameter | 1mm |
| Pin Diameter (Max.) | 1.008mm |
| Pin Diameter (Min.) | 1.002mm |
| Point Diameter (Max.) | 0.90 mm |
| Point Diameter (Min.) | 0.80 mm |
| Tolerance | 0.56 0.08 mm |
| Tolerance | m6 |
| Type | Press Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
