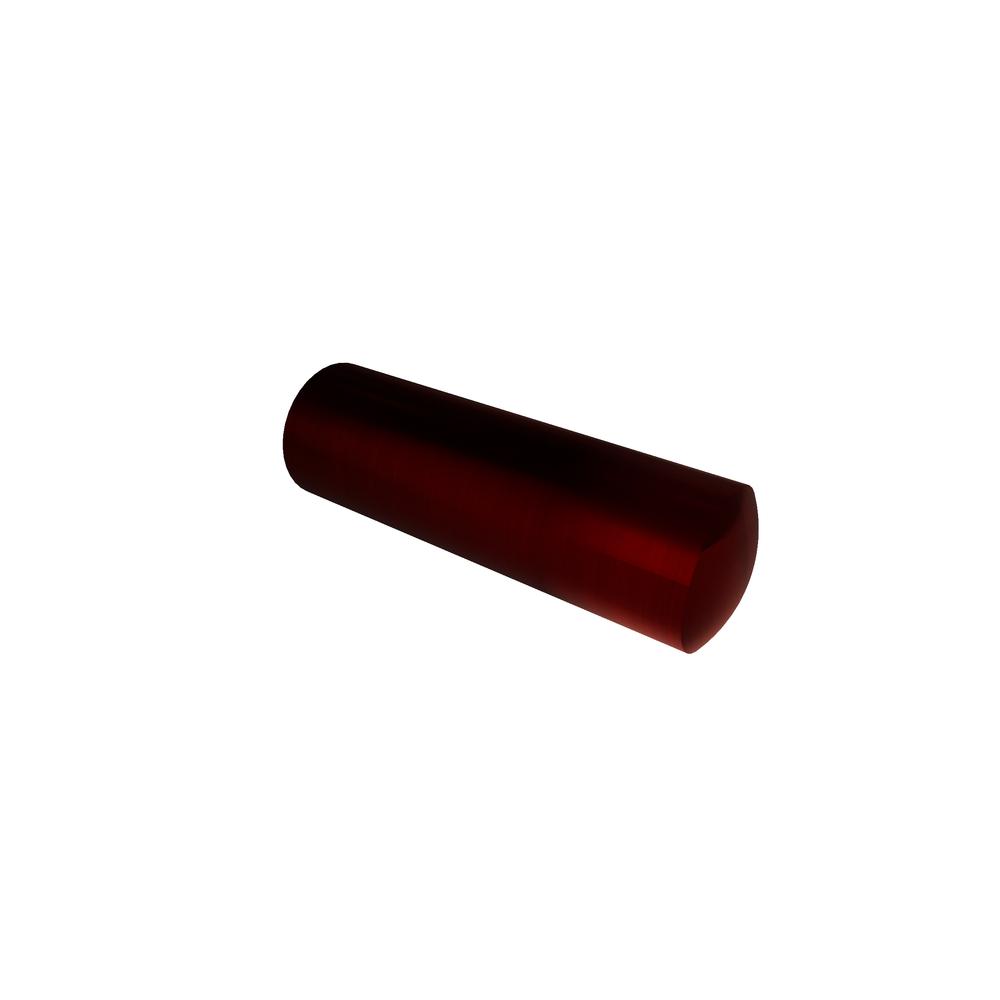

M1 X 4 DOWEL PIN ALLOY
.1R4DOWA
| Item Id | .1R4DOWA |
| Description | M1 X 4 DOWEL PIN DIN6325 ALLOY RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | DIN6325 |
| Brand | VARIED |
| Heat Treat | Hardened |
| Length | 4mm |
| Material | Steel |
| Nominal Diameter | 1mm |
| Pin Diameter (Max.) | 1.008mm |
| Pin Diameter (Min.) | 1.002mm |
| Point Diameter (Max.) | 0.90 mm |
| Point Diameter (Min.) | 0.80 mm |
| Tolerance | Fixture - 10 min. |
| Tolerance | m6 |
| Type | Press Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
