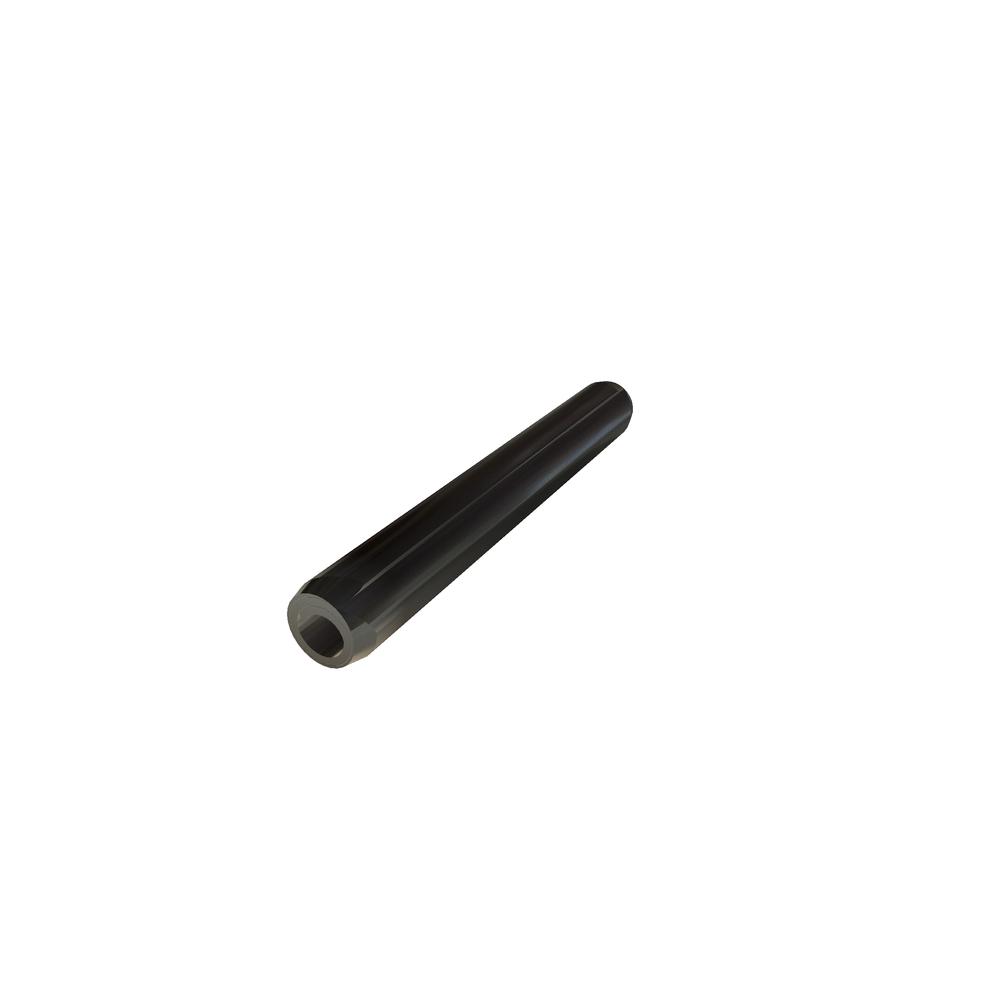

M1 X 8 SPIROL PIN MED. DUTY 302 SST
.1R8MDP
Item Id | .1R8MDP |
Description | M1 X 8 SPIROL PIN MED. DUTY 302SST |
Alternate Codes | 2825-8191 |
Extended Description | |
Packaging | EA |
Brand | VARIED |
Chamfer Diameter | 0.95 mm |
Chamfer Length | 0.30 mm |
Finish | Plain |
Material | 302 Stainless Steel |
Nominal Diameter | 64 |
OD (Max.) | 1.15 mm |
OD (Min.) | 1.05 mm |
Outside Diameter (Max.) | 1.15 mm |
Recommended Hole Size (Max.) | 1.04 mm |
Recommended Hole Size (Min.) | 1.00 mm |
Type | Mediumduty |
Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
