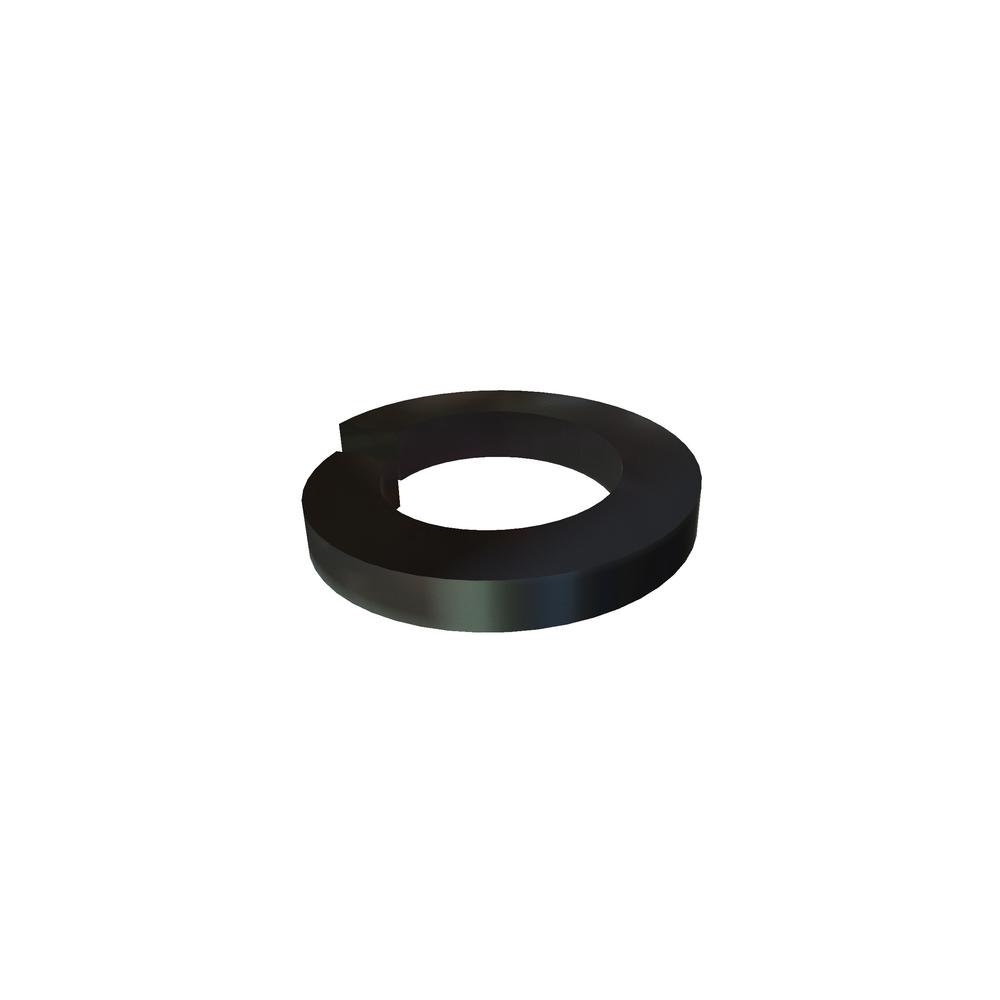

M20 SPLIT L/W 316 SST RoHS
.20NSLW3
| Item Id | .20NSLW3 |
| Description | M20 SPLIT L/W DIN127B 316SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92153A447 |
| Brand | VARIED |
| Finish | Plain |
| ID (Max.) | 20.66 mm |
| ID (Min.) | 20.28 mm |
| Inside Diameter (Min.) | 20.28 mm |
| Material | 316 Stainless Steel |
| Meets (Standard) | ASME B18.21.2M |
| Nominal Diameter | 20.00 mm |
| OD | 538 |
| OD (Max.) | 33.26 mm |
| Outside Diameter (Max.) | 33.26 mm |
| Recommended For Screw Size | M20 |
| RoHS | Compliant |
| Thickness (Min.) | 4.78 mm |
| Type | Split Lock Washer |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
