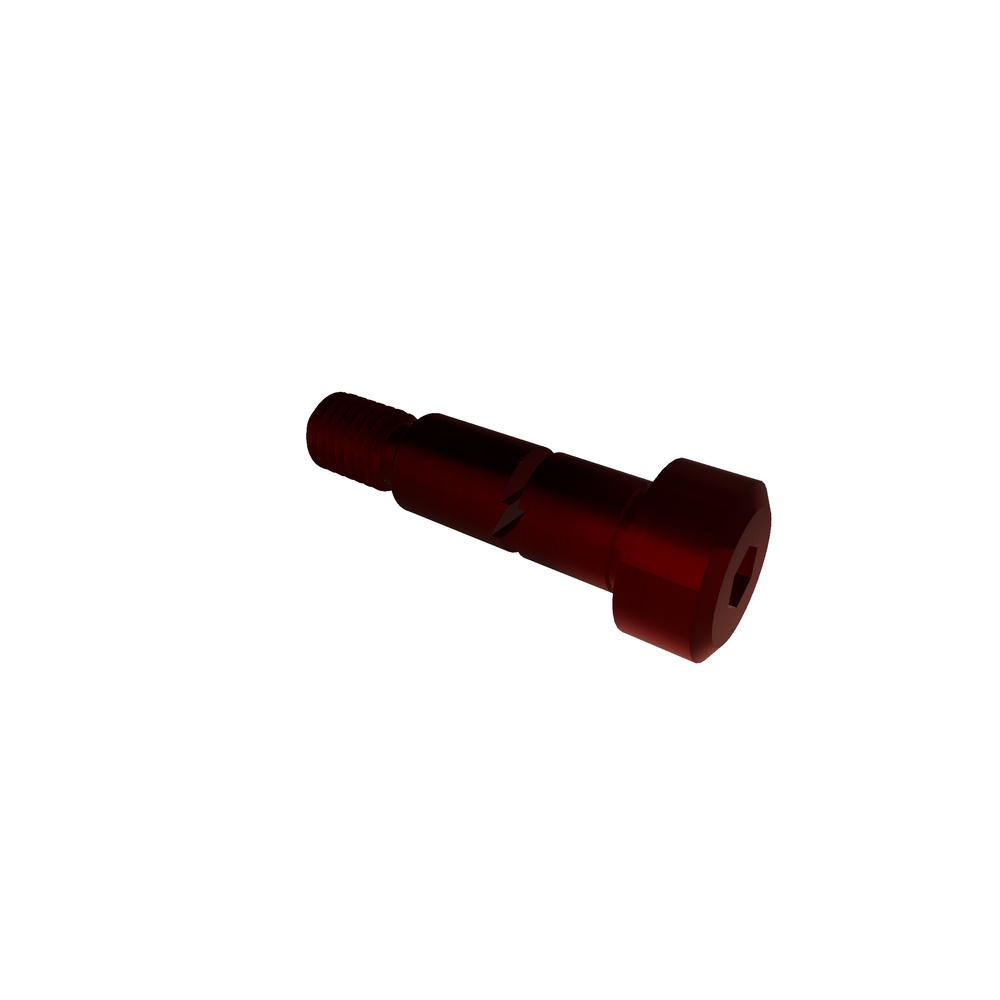

M20 X 50 SHLDR BOLT ALLOY
.20R50SHBA
| Item Id | .20R50SHBA |
| Description | M20 X 50 SHLDR BOLT ALLOY |
| Alternate Codes | 92981A607 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92981A607 |
| Brand | VARIED |
| Finish | Plain |
| Head Diameter (Max.) | 30.00 mm |
| Head Diameter (Min.) | 29.67 mm |
| Head Height (Max.) | 14.00 mm |
| Head Height (Min.) | 13.73 mm |
| Head Side Height (Min.) | 2.00 mm |
| Hex Socket Size | 10.00 mm |
| Key Engagement | 8.80 mm |
| Length | 50mm |
| Material | Alloy |
| Meets (Standard) | ASME B18.3.3M-1986 (2002) |
| Nominal Diameter | 16.00 mm |
| Nominal Shoulder Diameter | 20.00 mm |
| Shoulder Diameter | M20 |
| Shoulder Diameter (Max.) | 19.98 mm |
| Shoulder Diameter (Min.) | 19.93 mm |
| Thread Length | 22.4 mm |
| Thread Size | M16x2 |
| Thread Type | Metric Coarse |
| Type | Shoulder Bolt |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
