.24C80HHDS/F
M24-3.0 X 80 HX HD F/T SST RoHS
Alternate Codes: DIN933

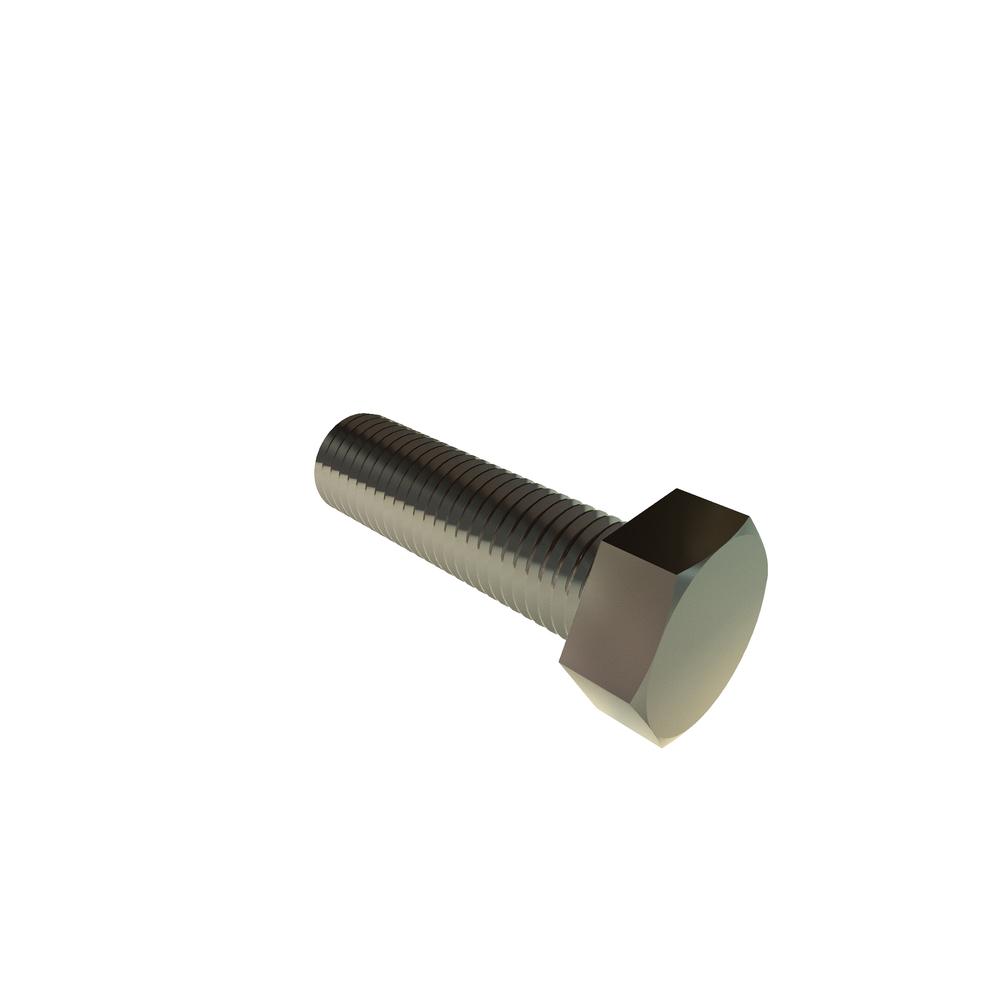

M24-3.0 x 80 Hex Head Full Thread DIN933 Stainless RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M24x3 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Hex |
| Body Diameter (Min.) | 23.16 mm |
| Nominal Thread Size | 24.00 mm |
| Grade | Other |
| Brand | VARIED |
| Additional Industry Cross Reference | 91287A837 |
| Length | 80mm |
| RoHS | Compliant |
| Meets (Standard) | DIN 933 |
| Body Diameter (Max.) | 24.84 mm |
| Head Height (Max.) | 15.22 mm |
| Head Height (Min.) | 14.78 mm |
| Width Across Flat (Max.) | 36.00 mm |
| Width Across Flat (Min.) | 35.38 mm |
