.25R18ROLA

Item Id.25R18ROLA

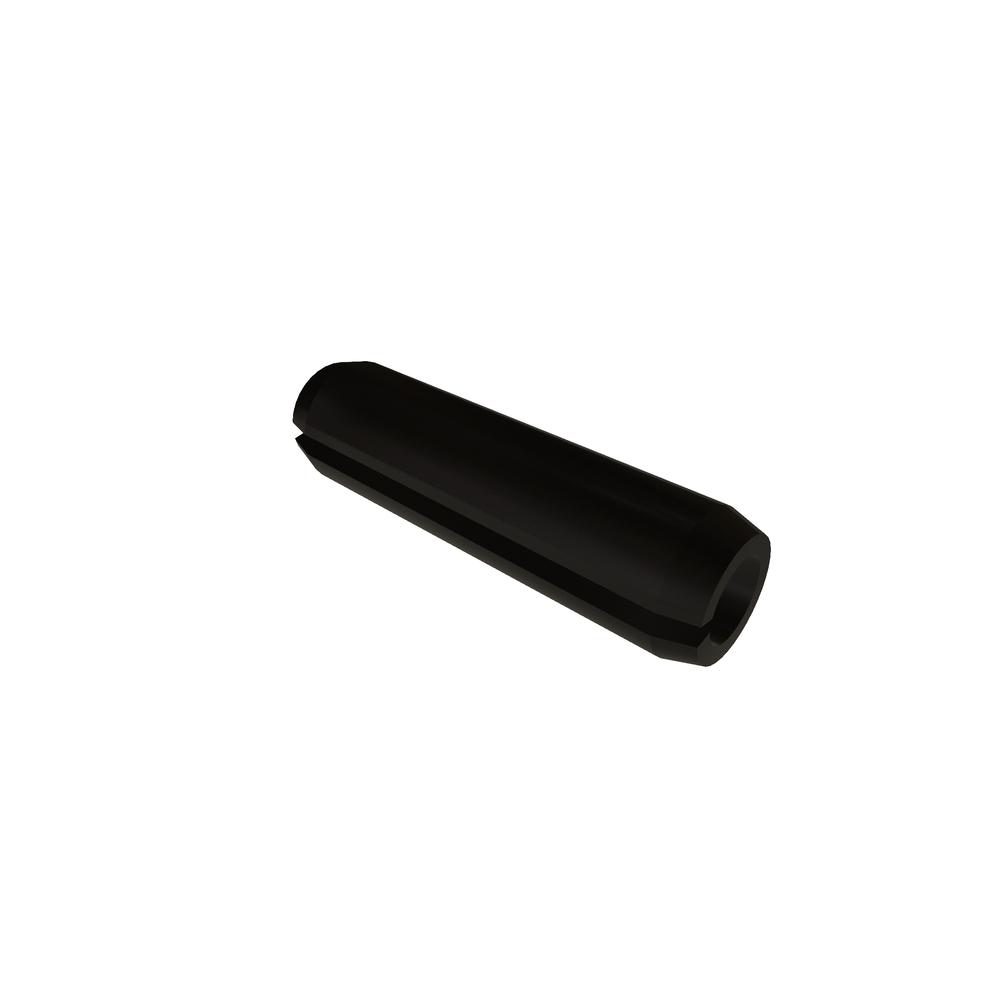

DescriptionM2.5 X 18 ROLL PIN ALLOY RoHS
Extended Description
PackagingEA
MaterialAlloy Steel
FinishPlain
UnitsMetric
Nominal Diameter2.5 mm
Pin Diameter (Min.)2.62 mm
Pin Diameter (Max.)2.72 mm
Chamfer Length (Min.)0.2 mm
Chamfer Length (Max.)0.9 mm
Recommended Hole Size (Min.)2.5 mm
Recommended Hole Size (Max.)2.58 mm
Wall Thickness0.55 mm
Chamfer Diameter2.4 mm
BrandVARIED
