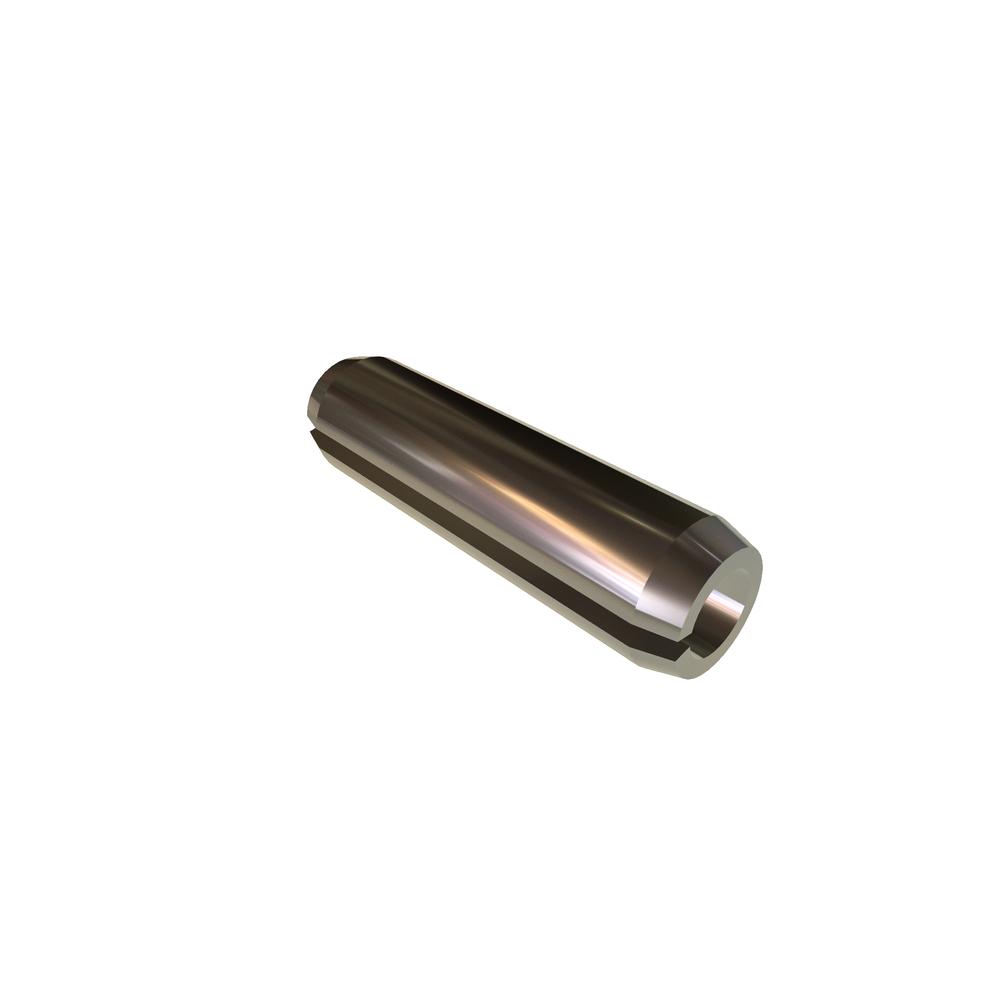

M2.5 X 22 ROLL PIN SST RoHS
.25R22ROLS
| Item Id | .25R22ROLS |
| Description | M2.5 X 22 ROLL PIN SST RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Chamfer Diameter | 2.4 mm |
| Chamfer Length (Max.) | 0.9 mm |
| Chamfer Length (Min.) | 0.2 mm |
| Finish | Plain |
| Material | 300 Stainless Steel |
| Nominal Diameter | 2.5 mm |
| Pin Diameter (Max.) | 2.72 mm |
| Pin Diameter (Min.) | 2.62 mm |
| Recommended Hole Size (Max.) | 2.58 mm |
| Recommended Hole Size (Min.) | 2.5 mm |
| RoHS | Compliant |
| Units | Metric |
| Wall Thickness | 0.55 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
