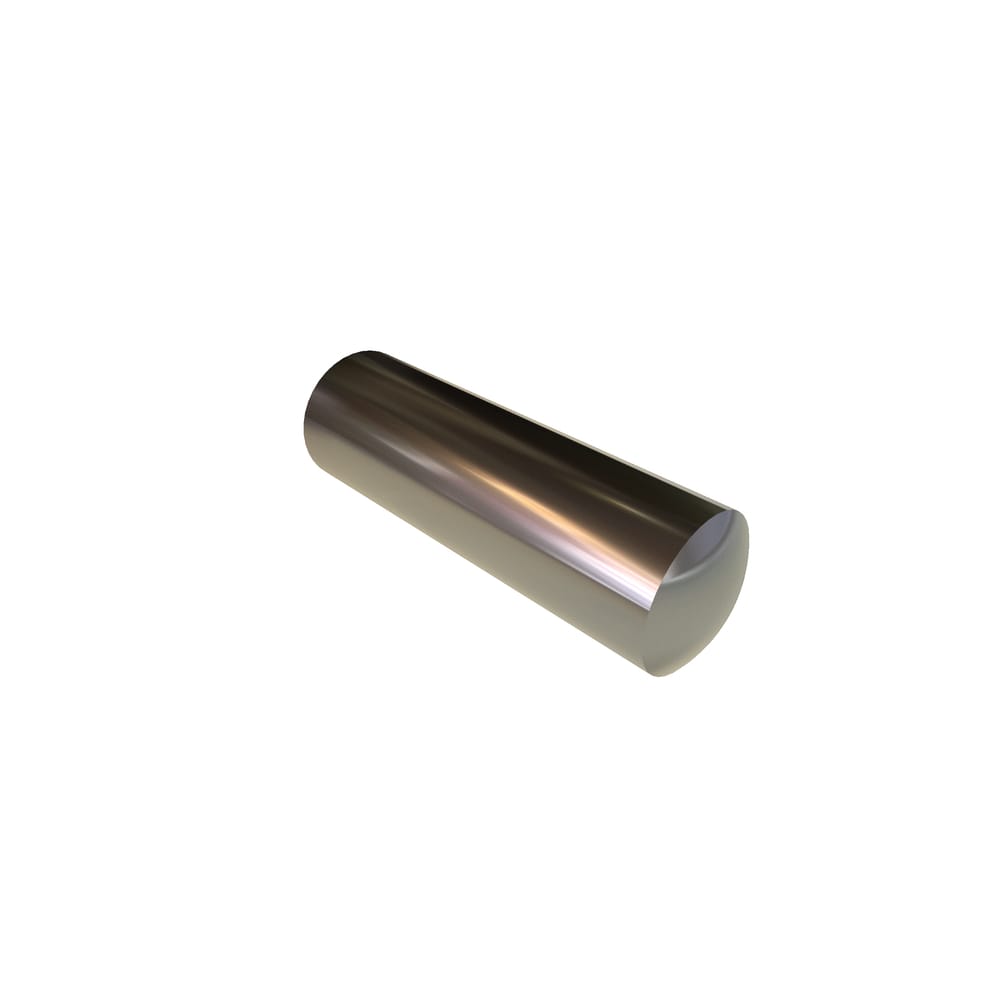

M2.5 X 4 DOWEL PIN SST RoHS
.25R4DOWS
| Item Id | .25R4DOWS |
| Description | M2.5 X 4 DOWEL PIN ISO2338-h8 SST RoHS |
| Extended Description | flat ends; measurement is overall length of pin |
| Packaging | EA |
| Additional Industry Cross Reference | ISO2338 |
| Brand | VARIED |
| Corner radius | 0.30 mm |
| Heat Treat | Unhardened |
| Length | 4mm |
| Material | 300 Stainless Steel |
| Nominal Diameter | 2.5mm |
| Pin Diameter (Max.) | 2.500mm |
| Pin Diameter (Min.) | 2.486mm |
| Point Diameter | 2.4 mm |
| RoHS | Compliant |
| Tolerance | h8 |
| Type | Slip Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
