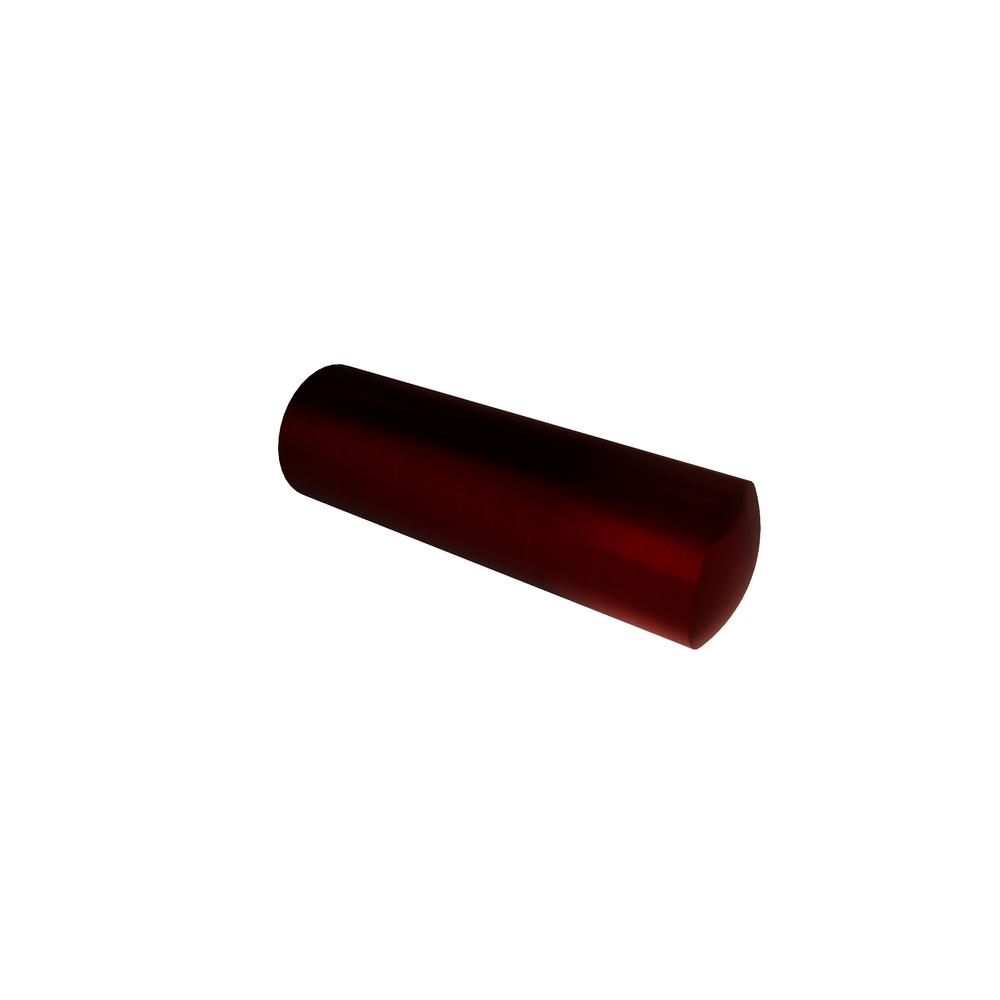

M2.5 X 6 DOWEL PIN ALLOY
.25R6DOWA
| Item Id | .25R6DOWA |
| Description | M2.5 X 6 DOWEL PIN m6 TOL ALLOY RoHS |
| Alternate Codes | .25R6DOWA/M6 |
| Extended Description | ISO 8734-A |
| Packaging | EA |
| Additional Industry Cross Reference | DIN6325 |
| Brand | VARIED |
| Heat Treat | Hardened |
| Length | 6mm |
| Material | Alloy Steel |
| Nominal Diameter | 2.5mm |
| Pin Diameter (Max.) | 2.508mm |
| Pin Diameter (Min.) | 2.502mm |
| Point Diameter (Max.) | 2.40 mm |
| Point Diameter (Min.) | 2.20 mm |
| Tolerance | 0.48 0.08 mm |
| Tolerance | m6 |
| Type | Press Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
