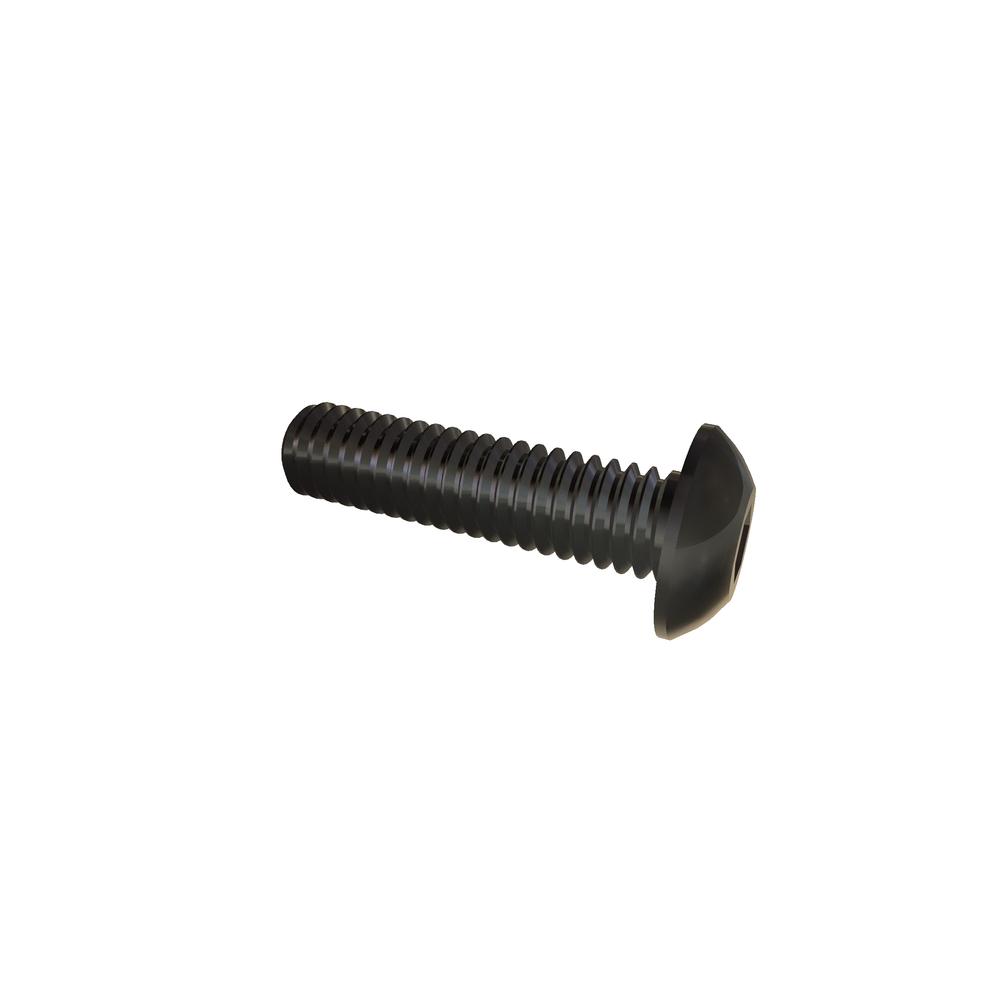

Image for reference purposes only. Actual product may vary.
.25S10BHC3
M2.5-.45 X 10 BUT SOC 316 SST RoHS
Alternate Codes: N/A
M2.5-.45 X 10 Button Head Socket ISO 7380-1 316 Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.328 | $0.172 | $0.136 | $0.126 | $0.106 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 2.5 mm |
| Length | 10mm |
| Thread Size | M2.5x0.45 |
| Finish | Plain |
| Material | 316 Stainless Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 1.37 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Fillet Transition Diameter (Min.) | 2.77 mm |
| Fillet Transition Diameter (Max.) | 3.02 mm |
| Head Side Height (Ref.) | 0.25 mm |
| Key Engagement | 0.80 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 4.75 mm |
| Head Diameter (Min.) | 4.45 mm |
| Head Height (Min.) | 1.15 mm |
| Hex Socket Size | 1.52 mm |
