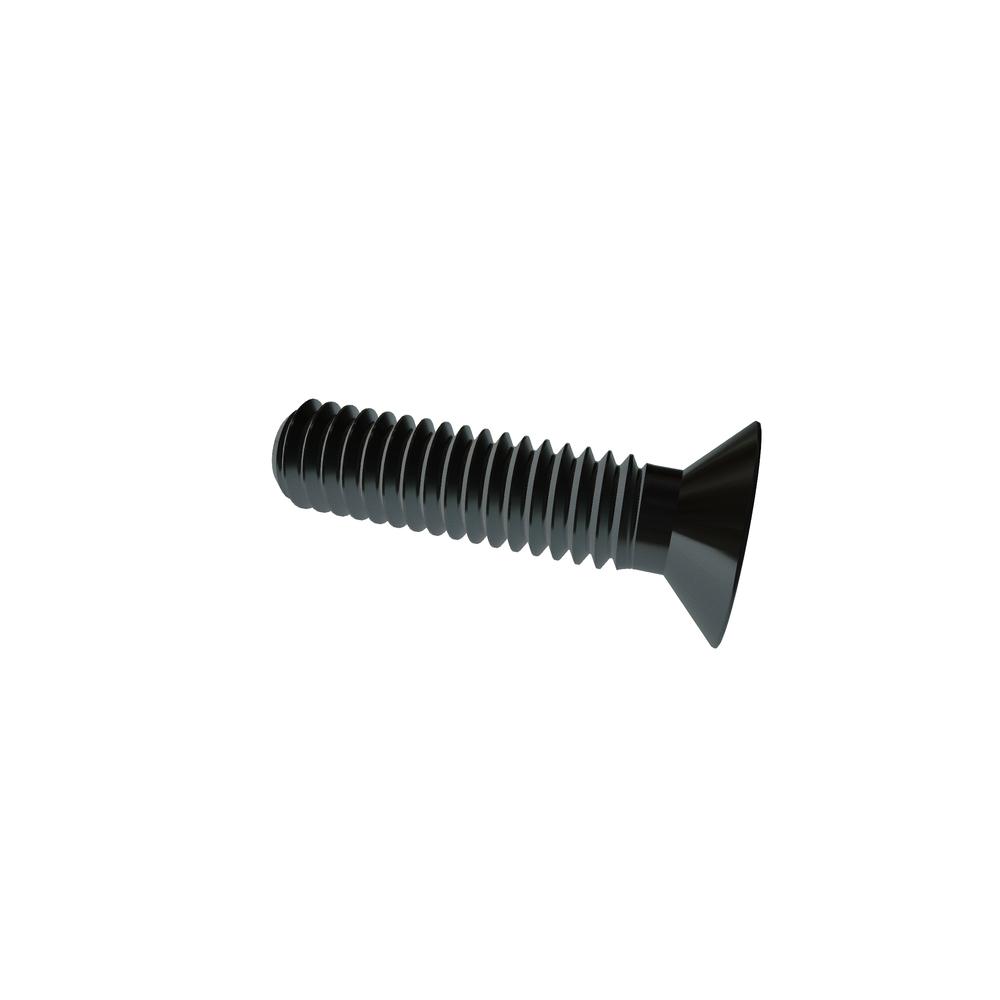

M2.5-.45 X 10 PHIL FLAT STL ZN CR3
.25S10PFMZR
| Item Id | .25S10PFMZR |
| Description | M2.5-.45 X 10 PHIL FLAT STL ZN RoHS |
| Alternate Codes | 11289-01, 518196, 60198, 91420A020 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91420A020 91420A020 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 4.70 mm |
| Head Diameter (Min.) | 4.40 mm |
| Head Height | 1.50 mm |
| Head Type | Flat |
| Length | 10mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 2.50 mm |
| Recess Depth | 1.78 mm |
| Recess Diameter | 2.78 mm |
| Recess Width | 0.74 mm |
| RoHS | Compliant |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
