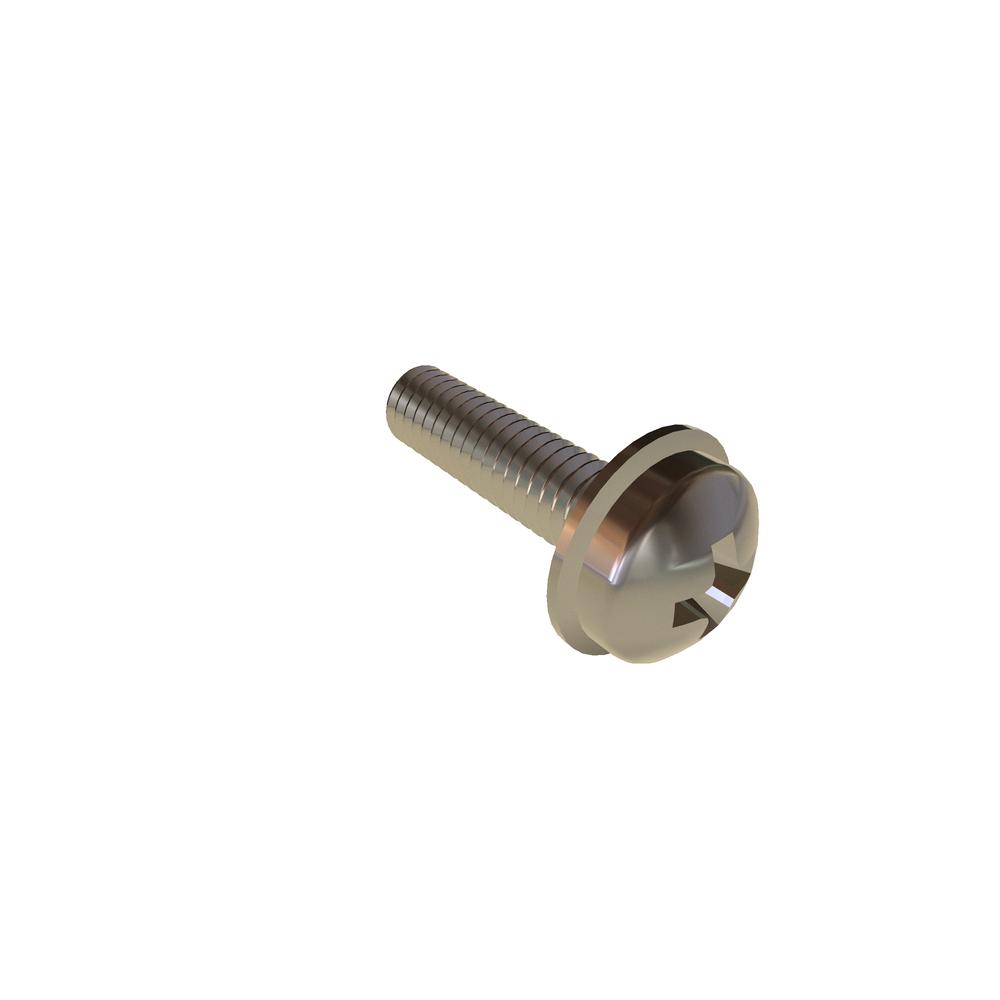

M2.5-.45 X 10 PHIL PAN INT SEMS SST RoHS
.25S10PPIS
| Item Id | .25S10PPIS |
| Description | M2.5-.45 X 10 PHIL PAN INT SEMS SST RoHS |
| Extended Description | JIS B1188-D |
| Packaging | EA |
| Additional Industry Cross Reference | 90317A108 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.90 mm |
| Head Radius (Min.) | 4.00 mm |
| Head Type | Pan |
| Length | 10mm |
| Lock Washer Inside Diameter (Max.) | 2.84 mm |
| Lock Washer Inside Diameter (Min.) | 2.70 mm |
| Lock Washer Outside Diameter (Max.) | 5.50 mm |
| Lock Washer Outside Diameter (Min.) | 5.20 mm |
| Lock Washer Thickness (Min.) | 0.80 mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 2.50 mm |
| Penetration Depth (Max.) | 1.55 mm |
| Penetration Depth (Min.) | 1.15 mm |
| Recess Diameter | 2.68 mm |
| RoHS | Compliant |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | Internal Tooth Lock Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
