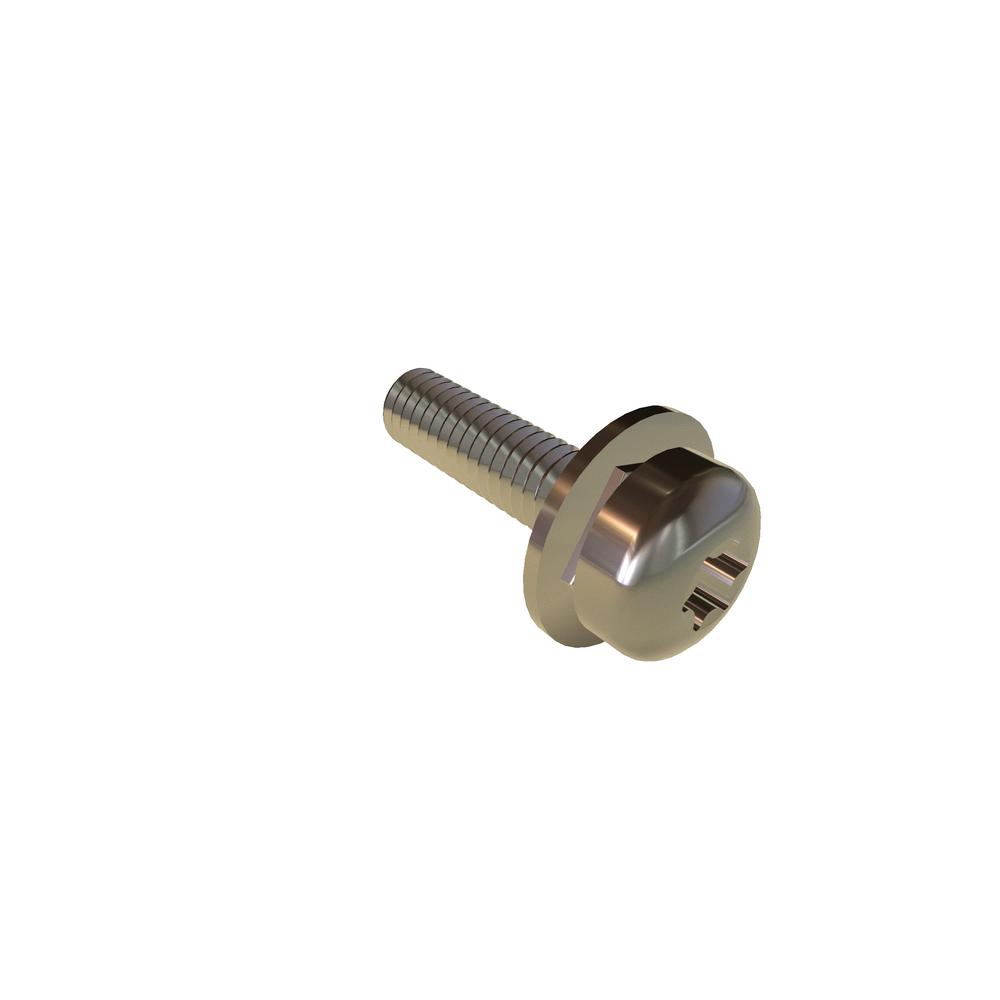

M2.5-.45 X 10 TORX PAN CREST CUP SEMS
.25S10XPCS
| Item Id | .25S10XPCS |
| Description | M2.5-.45 X 10 TORX PAN CREST CUP SEMS SS |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T8 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.96 mm |
| Head Radius (Min.) | 4.00 mm |
| Head Type | Pan |
| Length | 10mm |
| Lock Washer Height (Max.) | 1.26 mm |
| Lock Washer Height (Min.) | 0.76 mm |
| Lock Washer Outside Diameter (Max.) | 6.35 mm |
| Lock Washer Outside Diameter (Min.) | 6.20 mm |
| Lock Washer Thickness (Max.) | 0.63 mm |
| Lock Washer Thickness (Min.) | 0.38 mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14583 |
| Nominal Diameter | 2.50 mm |
| Penetration Depth (Max.) | 1.04 mm |
| Penetration Depth (Min.) | 0.91 mm |
| Recess Diameter | 2.31 mm |
| RoHS | Compliant |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | Crest Cup Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
