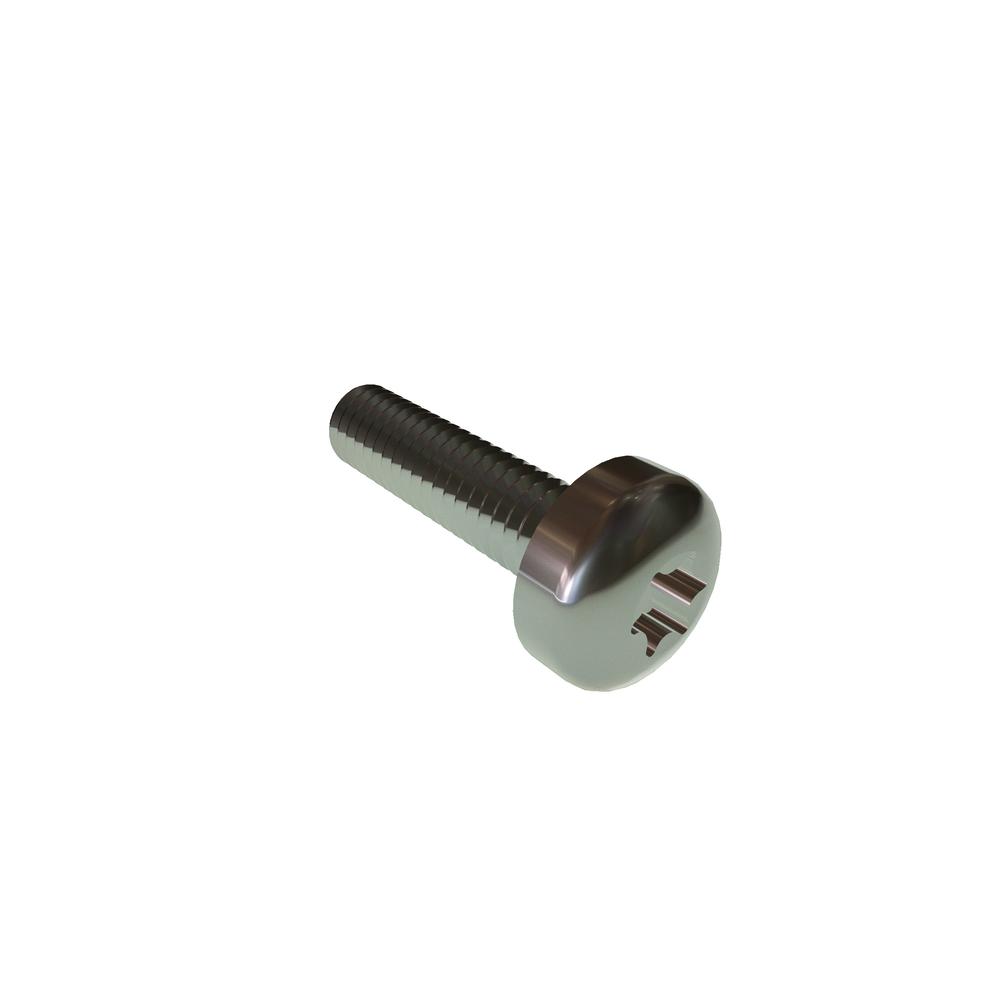

M2.5-.45 X 10 TORX PAN SST RoHS
.25S10XPMS
| Item Id | .25S10XPMS |
| Description | M2.5-.45 X 10 TORX PAN ISO 14583 SST |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T8 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 5.00 mm |
| Head Diameter (Min.) | 4.70 mm |
| Head Height (Max.) | 2.10 mm |
| Head Height (Min.) | 1.96 mm |
| Head Radius (Min.) | 4.00 mm |
| Head Type | Pan |
| Length | 10mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14583 |
| Nominal Diameter | 2.50 mm |
| Recess Depth (Max.) | 1.04 mm |
| Recess Depth (Min.) | 0.91 mm |
| Recess Diameter | 2.31 mm |
| RoHS | Compliant |
| Thread Size | M2.5x0.45 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
